Vibration Motor Price List
Vibration motors rely on their own high-frequency vibration to generate the vibration force, therefore, during the operation process, the motor itself will rise to a high temperature. Because of the existence of the fit clearance, the axle of the vibration motor after the temperature rise will expand. After the expansion, the axle and the bearing should have close cooperation with each other to achieve the normal operating status. Without the fit clearance, the vibration motor after the operating temperature reaches certain level will be faced with a series of problems, which might even stop operation or be burned. Hence, this problem requires more attention in vibration motor maintenance.
The internal structure of the vibration motor and the general motor is the same. The major difference is that the vibration motor installs a group of adjustable eccentric blocks on two ends of the rotor axle. The centrifugal force generated by the high-speed rotation of the axle and the eccentric block can be used to obtain the exciting force. vibration motor, compared with the general motor in terms of machinery and electric aspects, requires a reliable shock resistance. The rotor axle of the vibration motor of the same power grade is much thicker than that of the general motor of the same grade to meet the requirements of practical working conditions.
AC Vibration Motor Price List
Product | SKU | Power | Phase | Price |
ATO-AVB-TO302S1 | 30W | 1 Phase | $92.56 | |
ATO-AVB-TO402S1 | 40W | 1 Phase | $124.68 | |
ATO-AVB-TB502S2 | 50W | 1 Phase | $129.89 | |
ATO-AVB-TB602S2 | 60W | 1 Phase | $136.58 | |
ATO-AVB-TB702S2 | 70W | 1 Phase | $142.98 | |
ATO-AVB-TB802S2 | 80W | 1 Phase | $145.62 | |
ATO-AVM-MVE603 | 30W | 3 Phase | $249.75 | |
ATO-AVM-MVE2003 | 90W | 3 Phase | $312.58 | |
ATO-AVM-MVE40015 | 150W | 3 Phase | $669.89 | |
ATO-AVM-MVE50015 | 250W | 3 Phase | $726.89 | |
ATO-AVM-MVE70015 | 370W | 3 Phase | $921.87 | |
ATO-AVM-MVE80015 | 400W | 3 Phase | $1,098.67 | |
ATO-AVM-MVE21001 | 1 kW | 3 Phase | $2,343.75 | |
ATO-AVM-MVE26001 | 1.5 kW | 3 Phase | $3,256.98 | |
ATO-AVM-MVE38001 | 2 kW | 3 Phase | $4,589.69 |
DC Brushless Vibration Motor Price List
Product | SKU | Power | Type | Voltage | Rated Speed | Price |
ATO-10DCBVM12-Z03 | 10W | DC Brushless Vibration Motor | 12/24V | 3000 rpm | $209.86 | |
ATO-15DCBVM12-Z03 | 15W | DC Brushless Vibration Motor | 12/24V | 4500 rpm | $214.46 | |
ATO-20DCBVM12-Z03 | 20W | DC Brushless Vibration Motor | 12/24V | 7000 rpm | $219.08 | |
ATO-25DCBVM12-Z03 | 25W | DC Brushless Vibration Motor | 12/24V | 7000 rpm | $223.69 | |
ATO-30DCBVM12-Z03 | 30W | DC Brushless Vibration Motor | 12/24V | 7000 rpm | $228.50 | |
ATO-25DCBVM-244 | 25W | DC Brushless Vibration Motor | 24V | 3000 rpm | $321.79 | |
ATO-35DCBVM-244 | 35W | DC Brushless Vibration Motor | 24V | 4700 rpm | $346.52 | |
ATO-50DCBVM-244 | 50W | DC Brushless Vibration Motor | 24V | 7000 rpm | $385.79 | |
ATO-60DCBVM-124 | 60W | DC Brushless Vibration Motor | 12V | 7000 rpm | $385.79 | |
ATO-60DCBVM-364 | 60W | DC Brushless Vibration Motor | 36V | 7000 rpm | $396.68 | |
ATO-65DCBVM-244 | 65W | DC Brushless Vibration Motor | 24V | 7000 rpm | $385.79 | |
ATO-65DCBVM-484 | 65W | DC Brushless Vibration Motor | 48V | 7000 rpm | $385.79 | |
ATO-70DCBVM-364 | 70W | DC Brushless Vibration Motor | 36V | 7000 rpm | $396.68 | |
ATO-80DCBVM-2414 | 80W | DC Brushless Vibration Motor | 24V | 5000 rpm | $417.85 | |
ATO-80DCBVM-3614 | 80W | DC Brushless Vibration Motor | 36V | 5000 rpm | $417.85 | |
ATO-100DCBVM-2414 | 100W | DC Brushless Vibration Motor | 24V | 7000 rpm | $431.69 | |
ATO-DCVBM-2012 | 20W | DC Brushed Vibration Motor | 12V | 3000 rpm | $198.86 | |
ATO-DCVBM-2024 | 20W | DC Brushed Vibration Motor | 24V | 3000 rpm | $198.86 | |
ATO-DCVBM-5012 | 40W | DC Brushed Vibration Motor | 12V | 3000 rpm | $421.87 | |
ATO-DCVBM-5024 | 40W | DC Brushed Vibration Motor | 24V | 3000 rpm | $421.87 | |
ATO-DCVBM-10012 | 100W | DC Brushed Vibration Motor | 12V | 3000 rpm | $437.59 | |
ATO-DCVBM-10024 | 100W | DC Brushed Vibration Motor | 24V | 3000 rpm | $437.59 | |
ATO-DCVBM-160124 | 160W | DC Brushed Vibration Motor | 12/24V | 3000 rpm | $523.89 |
Concrete Vibrator Motor Price List
Product | SKU | Power | Phase | Voltage | Price |
ATO-CVM-1kW | 1 kW | 3 Phase | 380V | $489.74 | |
2 Phase | 220V | $515.39 | |||
ATO-CVM-1.5kW | 2 hp (1.5 kW) | 3 Phase | 380V | $522.92 | |
2 Phase | 220V | $549.40 | |||
ATO-CVM-2.2kW | 3 hp (2.2 kW) | 3 Phase | 380V | $561.69 | |
ATO-CVM-3kW | 4 hp (3 kW) | 3 Phase | 380V | $600.15 |
Explosion Proof Vibration Motor Price List
Product | SKU | Power | Pole | Price |
ATO-EPNM-VBB-34 | 120W | 4 Pole | $1,171.69 | |
ATO-EPNM-VBB-52 | 500W | 2 Pole | $1,265.89 | |
ATO-EPNM-VBB-102 | 750W | 2 Pole | $1,736.89 | |
ATO-EPNM-VBB-402 | 3 kW | 2 Pole | $6,765.48 | |
ATO-EPNM-VBB-844 | 5.5 kW | 4 Pole | $8,996.98 |
Note: The vibration motors price in the table are just for your reference. Please note that all the gases with measuring ranges are not listed in the table. If you want a vibration motor that is not listed in the table, please feel free to contact us.
The vibration motor and shaking motor all belong to the three-phase asynchronous vibration source electric motors, which are driven by winding like general motors. However, the vibration motor and shaking motor add the eccentric block to two ends of a general motor. At the same time, the vibration motor and shaking motor can adjust the value of the exciting force by modulating the eccentric block on two ends.

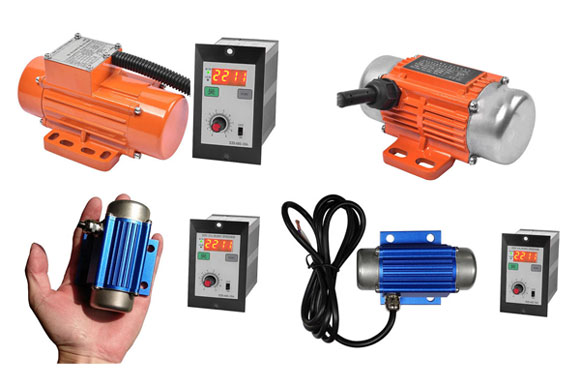

ATO has AC vibration motor, DC brushless vibration motor, concrete vibrator motor and explosion proof vibration motor, power can be selected from 10W, 50W, 100W to 5.5 kW, 3000rpm-7000rpm rated speed. DC brushless vibration motor with speed dispaly controller, ATO vibration motor have high efficiency, energy saving, stable running and long service life. Special voltage, speed, power please contact us, can be customized.
