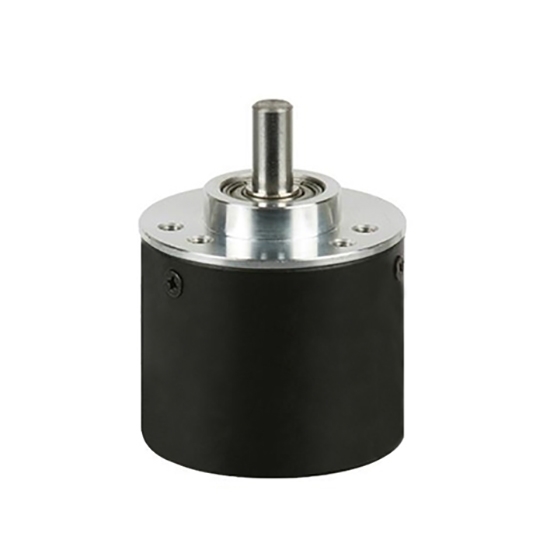

    Incremental Rotary Encoder, Shaft, 400 ppr

    $142.22
    Low cost 400 ppr rotary encoder adopts stainless steel shaft, high quality, several output modes to choose, manufacturer direct sale. Incremental rotary encoder has 6mm shaft diameter and 38mm shell diameter.
    *
    *
    *
    SKU: ATO-IRE-400PS
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Incremental optical rotary encoders with 400 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

    Features:

    • Incremental rotary encoder internal adopts ASIC devices
    • High reliability, long life
    • Anti-jamming performance
    • Small size, light weight, compact structure
    • Easy installation

    Specification:

    Basics Model ATO-S3806G-400BM
    Weight 100 g
    Wiring Color Red Black Green White Yellow Brown Gray Orange
    Signal Vcc GND A B Z A- B- Z-
    Mechanical properties Maximum shaft speed (r/min) 5000
    Starting torque <0.03Nm (25℃)
    Maximum shaft load Radial load: 50N, axial load: 20N
    Shock resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational inertia 4X10-8kgm2
    Operating temperature -30~+85℃ (-22~+185℉)
    Storage temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
    Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
    Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
    Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
    Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
    Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
    Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
    Maximum frequency response 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz

    Model selection:

    Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
    S: Shaft 38: 38mm 06: 6mm G: Cable edge output 1: 1m
    2: 2m
    3: 3m
    4: 4m
    400: 400 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage ouput NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    5: +5VDC
    830: +8~30VDC

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Tips: How to use a incremental encoder?

    1. Incremental rotary encoders have difference on resolution, the number can be from 6 to 5400 or higher, then the larger number of pulse, the higher the resolution. This is one of important basis for selection.
    2. Incremental encoder usually has three signal outputs: A, B and Z, generally adopt TTL level, A pulse is in the front while B pulse is after it. There is 90° of skewing between A pulse and B pulse, each circle issue a Z pulse, which can be used as a reference mechanical zero. We usually detect direction by judging whether A ahead of B, or B ahead of A, but the specific situation depends on the product description.
    3. Using PLC to collect data, we can choose high-speed counting module; when using IPC to collect data, we can choose high-speed counting board; when using SCM to collect data, we can choose the input port of optical coupler.
    4. It is recommended to use B pulse as forward pulse, A pulse as reverse pulse and Z as original point zero pulse.
