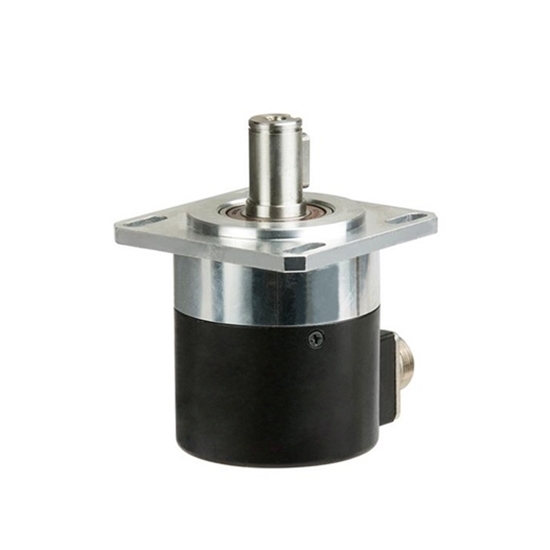

    Incremental Rotary Encoder, Shaft, 600 ppr

    $181.59
    Cheap optical rotary encoder adopts stainless steel shaft, square flange and plug edge output mode. The diameter of shaft is 15mm. The diameter of shell is 58mm. Incremental rotary encoder has 600 ppr resolution, high reliability, high quality, optional output mode and working voltage, manufacturer direct sale.
    *
    *
    *
    SKU: ATO-IRE-600PS
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

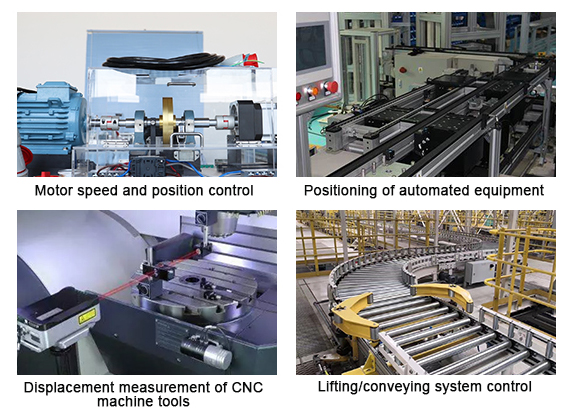

    Incremental optical rotary encoders with 600 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

    Features:

    • Incremental rotary encoder internal adopts ASIC devices
    • High reliability, long life
    • Anti-jamming performance
    • Small size, light weight, compact structure
    • Easy installation

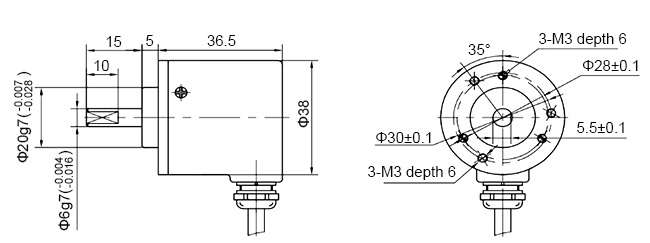

    Specification:

    Basics Model ATO-F5815C-600BM
    Weight 100 g
    Wiring Signal Vcc GND A B Z A- B- Z- Shielded wire
    Color Red Black Green White Yellow Brown Gray Orange Copper
    5 pin plug 3 5 1 2 4 - - - -
    7 pin plug 1 4 3 5 2 - - - 6
    9/10 pin plug 1 4 5 3 2 7 6 8 9
    19 pin plug 8 10, 12 1 3 2 13 15 14 17
    Mechanical properties Maximum shaft speed (r/min) 5000
    Starting torque <0.03Nm (25℃)
    Maximum shaft load Radial load: 50N, axial load: 20N
    Shock resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational inertia 4X10-8kgm2
    Operating temperature -30~+85℃ (-22~+185℉)
    Storage temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
    Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
    Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
    Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
    Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
    Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
    Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
    Maximum frequency response 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz

    Model selection:

    Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
    F: Shaft+Flange 58: 58mm 15: 15mm C: Plug edge output 1: 1m
    2: 2m
    3: 3m
    4: 4m
    600: 600 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage ouput NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    5: +5VDC
    830: +8~30VDC

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Tips: Measurement accuracy of the incremental encoder

    As we all know, all the measurements are rough estimates of the true value, that is, the measured value always has a certain error from the true value. So the size of such an error is what is commonly called the measurement accuracy, which reflects the ability of the measuring instrument system to truly restore the measured signal value.
