    Incremental Rotary Encoder, Shaft, 2000 ppr

    5 out of 5 based on 1 reviews | Write a review
    $155.24

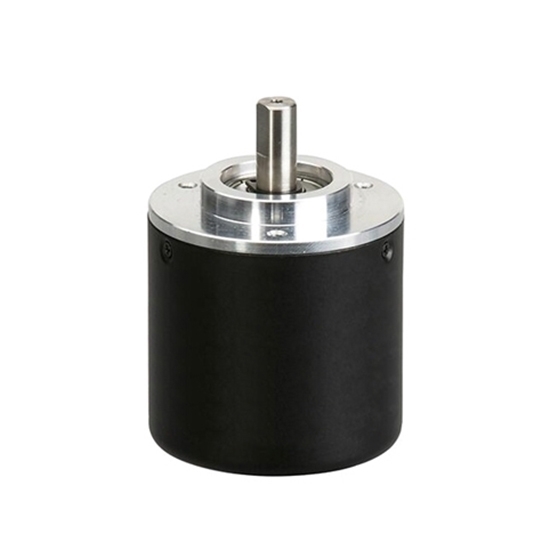

    Low priced optical rotary encoder with stainless steel shaft has 6mm shaft diameter, 38mm shell diameter, 2000 ppr resolution, A/B/Z signal, optional output mode, optional voltage DC 5V/8-30V. Incremental rotary encoder can be used for workbenches, printing and packaging machinery.
    *
    *
    *
    SKU: ATO-IRE-2000PS
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Incremental optical rotary encoders with 2000 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

    Features:

    • Incremental rotary encoder internal adopts ASIC devices
    • High reliability, long life
    • Anti-jamming performance
    • Small size, light weight, compact structure
    • Easy installation

    Specification:

    Basics Model ATO-S3806G-2000BM
    Weight 100 g
    Wiring Color Red Black Green White Yellow Brown Gray Orange
    Signal Vcc GND A B Z A- B- Z-
    Mechanical properties Maximum shaft speed (r/min) 5000
    Starting torque <0.03Nm (25℃)
    Maximum shaft load Radial load: 50N, axial load: 20N
    Shock resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational inertia 4X10-8kgm2
    Operating temperature -30~+85℃ (-22~+185℉)
    Storage temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
    Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
    Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
    Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
    Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
    Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
    Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
    Maximum frequency response 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz

    Model selection:

    Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
    S: Shaft 38: 38mm 06: 6mm G: Cable edge output 1: 1m
    2: 2m
    3: 3m
    4: 4m
    2000: 2000 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage ouput NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    5: +5VDC
    830: +8~30VDC

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Tips: The factors that affect the encoder reproducibility

    1. Noise: The connection between encoder and PLC or electronic driver does not conform to the standard EMC guidelines (for example, a more practical method is to provide proper shielding for both ends of encoder connection). This connection is susceptible to noise or causes problems associated with electromagnetic interference.
    2. Installation: The encoder is not installed on the motor for proper mechanical installation (eg poor connection will result in frequency hopping of the encoder).
      Therefore, extreme care must be taken when installing a machine encoder or an encoder with an induction motor system to ensure that the encoder is mounted on the machine by suitable mechanical means and that the connection of the electric drive or PLC complies with the EMC requirements.
