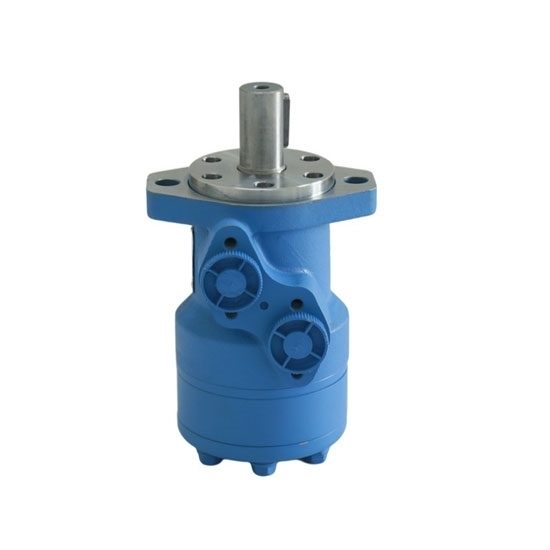

    Hydraulic Orbital Motor, 63cc/rev

    5 out of 5 based on 2 reviews | Write a review
    $199.69
    Orbital hydraulic motor can be mounted with 2 bolts or 4 bolts flange, used in agriculture machinery, fishing machinery, plastic industry, and construction machinery, etc. 63 cc/rev displacement, optional flat key shaft or splined shaft.
    *
    *
    SKU: ATO-HOM-63
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High torque low speed orbital hydraulic motor is widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machines, cleaners, grass cutters, winches, conveyors, slews, sweeper drives, augers, cutters, mowers and chippers.

    Specification

    Model ATO-OMP-63
    Shaft Type (Optional) Flat Key, Splined
    Flange Type (Optional) 2 Bolts, 4 Bolts
    Displacement 63 cc/rev (63 cm3/rev)
    Working Pressure 15 MPa
    Flow Continuous 45 LPM
    Intermittent 53 LPM
    Max.Speed Continuous 663 rpm
    Intermittent 774 rpm
    Pressure Continuous 124 ∆Bar
    Intermittent 138 ∆Bar
    Torque Continuous 86 Nm
    Intermittent 93 Nm
    Weight 6.5kg

    Note:

    • A simultaneous maximum torque and maximum speed are not recommended.
    • ∆Bar refers to true pressure difference between inlet port and outlet port.
    • Continuous Rating means that the motor may be run continuously at these ratings.
    • Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

    *To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

    Dimensions (Unit: mm)

    Dimensions of hydraulic orbital motor

    L1=143mm

    Hydraulic Orbital Motor Shaft (Unit: mm)

    motor shafts of hydraulic orbital motor

    Flange Types (Unit: mm)

    2 bolt flange hydraulic orbital motor

    4 bolt flange hydraulic orbital motor

    L=149mm

    Details

    Hydraulic Orbital Motor Details

    Tips: Applications of hydraulic orbital motor

    1. For agriculture: Hydraulic orbital motors are used for all kinds of combined harvesters, planters, rotary tillers, lawnmowers, sprayers, feed mixers, and ground drilling machines.
    2. For fishery: net lifter.
    3. For light industry: winding machine, textile machine, printing machine, washing machine for business.
    4. For the construction industry: road rollers, cement mixers, sweepers.
