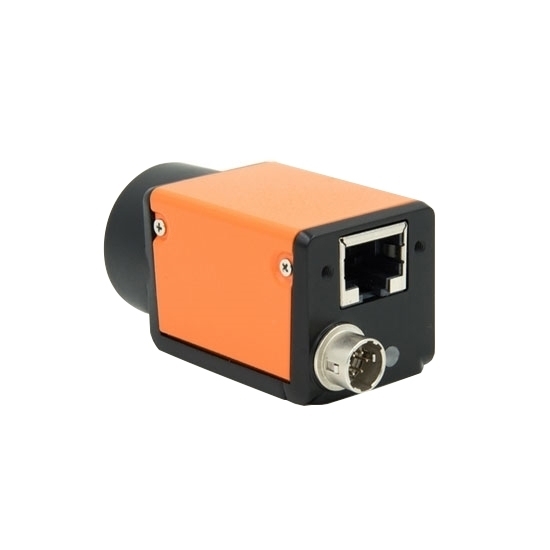

    GigE Vision Industrial Camera, 5.3MP, 1" CMOS, Mono/Color

    $1,609.05
    Industrial camera, 2592x2048 (5.3 Megapixel), is a best choice for machine vision applications, with format 1" CMOS, 20fps maximum frame rate, Gigabit Ethernet interface, C mount for lens, and available 8 or 10 bit depth, black and white or color selectable according to your requirements. High resolution, high speed and favorable price.
    *
    *
    SKU: ATO-CAMERA-500020
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    GigE vision industrial camera is a best choice for machine vision system with a resolution of 2592x2048 (5.3 Megapixel), suitable for various visual applications such as mobile phone screen detection, defect detection, electronic components manufacturing, wafer positioning applications and so on.

    Features

    • Support GenICam ™ and GigE Vision® Standard
    • Compact design, to save installation space
    • Rugged industrial housing design
    • Built-in temperature, power supply real-time monitoring sensor
    • Provide professional SDK for GigE machine vision camera

    Specification

    Model 5000-20gm 5000-20gc
    Resolution 2592x2048 (5.3 Mega Pixel)
    Sensor Type CMOS
    Sensor Model PYTHON 5000
    Format 1"
    Pixel Size 4.8μm x 4.8μm
    Maximum Frame Rate 20fps
    Bit Depth 8-bit or 10-bit
    Mono/Color Monochrome Color
    Exposure Time 16μs~1s
    SNR >38dB
    Dynamic Range 60dB
    Shutter Type Global Shutter
    Interface Gigabit Ethernet (100m Transmission Distance)
    Lens Mount Standard C-Mount
    Power Supply DC 6-24V, PoE
    Power Comsumption Approx. 3.1W@12V DC, Approx. 3.4W@PoE
    Hardware Control I/O input (external trigger), I/O output, Opto-couplers Isolation
    Programmable Control Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw, LUT, Black Level Correction
    Opearting System Support Windows XP/7/8/10
    Support 32-bit and 64-bit operating system/Arm/Linux (Software can be provided for free)
    Operating Tempearture -30~+60℃
    Storage Temperature -30℃~+80℃
    Mass 88g
    Dimension 42x29x29mm

    GigE Camera Dimensions

    GigE vision industrial camera dimensions

    Tips: Differences between the Industrial Camera and Ordinary Digital Camera
    1. Industrial camera has stable and reliable performance, and it’s easy to install, has compact structure and uneasy to damage. It can also work in a poor environment for a long time. However, an ordinary camera can’t play as it. For example, it’s impossible for a civil digital camera to work 24 hours a day or to work for several days in a row.
    2. The shutter time of an industrial camera is rather short, so it can get the object moving at a high speed.
    3. The imaging sensor of an industrial camera belongs to a progressive scanning while that of an ordinary camera is the interlaced scan. The manufacture process of an imaging sensor with progressive scanning is rather complex and expensive.
    4. The frame rate of industrial cameras is far higher than that of ordinary cameras. An industrial camera can shoot ten to hundreds of pictures per second, while an ordinary camera can only shot 2-3 pictures per second.
    5. The industrial camera output raw data whose spectral range is rather wide. So it’s suitable for the high quality image processing algorithm, such as the Machine Vision. However, the spectral range of images taken by an ordinary camera is only suitable for human vision. The image quality is rather poor after mjpeg compress, so it’s not detrimental to analysis.
    6. Industrial Camera is more expensive than the ordinary camera (DSC).

    1. Industrial Camera PDF Catalogue

    GigE Vision Industrial Camera Catalog.pdf

    USB Industrial Camera Catalog.pdf

    2. Industrial Lens PDF Catalogue

    Industrial Camera Lens Catalog.pdf
