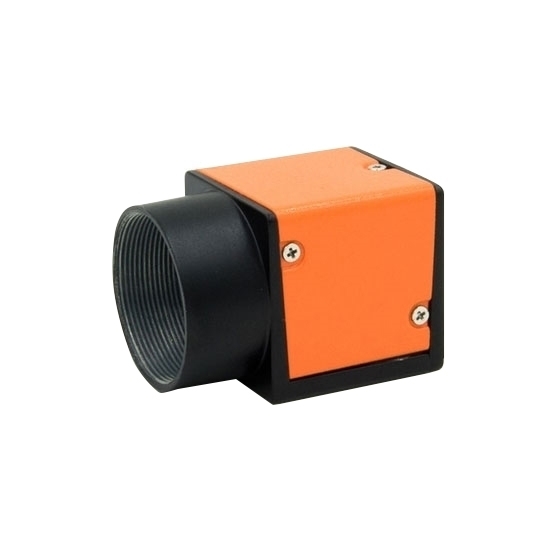

USB 3.0 vision industrial camera is an area scan with 1280x1024 (1.3 Mega Pixel), 1/2" CMOS and 210fps. This industrial camera has a high cost-performance, support Plug-and-Play, and also could work stably in a variety of harsh environment. It is suitable for 3D scanning, motion capture, trajectory analysis and other fields.
Features
- Support GenICam ™ and USB3 Vision® Standard
- Compact design, to save installation space
- Rugged industrial housing design
- Built-in temperature, power supply real-time monitoring sensor
- Provide professional SDK for GigE machine vision camera
Specification
Model |
1300-210um |
1300-210uc |
Resolution |
1280x1024 (1.3 Mega Pixel) |
Sensor Type |
CMOS |
Sensor Model |
PYTHON 1300 |
Format |
1/2" |
Pixel Size |
4.8μm x 4.8μm |
Maximum Frame Rate |
210fps |
Bit Depth |
8-bit or 10-bit |
Mono/Color |
Monochrome |
Color |
Exposure Time |
16μs~1s |
SNR |
>38dB |
Dynamic Range |
60dB |
Shutter Type |
Global Shutter |
Interface |
USB 3.0 |
Lens Mount |
Standard C-Mount |
Power Supply |
USB |
Power Comsumption |
3.5W |
Hardware Control |
I/O input (external trigger), I/O output, Opto-couplers Isolation |
Programmable Control |
Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw, LUT, Black Level Correction |
Opearting System |
Support Windows XP/7/8/10 Support 32-bit and 64-bit operating system/Arm/Linux (Software can be provided for free) |
Operating Tempearture |
-30~+60℃ |
Storage Temperature |
-30℃~+80℃ |
Mass |
60g |
Dimension |
29x29x29mm |
USB 3.0 Industrial Camera Dimensions
Tips: What does the industrial camera need to match with the image grabber?
The industrial camera needs to match well with the image grabber and then works normally. Generally, the following shall be matched:
1. Video signals
Black-and-white analog signal camera has two formats, namely the CCIR and RS170 (EIA). Generally, the image grabber supports the two industrial cameras at the same time.
2. Resolution
Each card only supports a camera within a resolution range.
3. Special functions
If the special functions of an industrial camera need to be applied, confirm whether the card supports the function firstly. For example, if you want several cameras to take photos at a same time, the image grabber must support multichannel; if the camera takes a progressive scanning, the image grabber must support progressive scanning.
4. Interface
Confirm whether the interface between the industrial camera and the grabber is matched, such as the Camera Link, Firewire1394, USB 3.0, and GigE.
