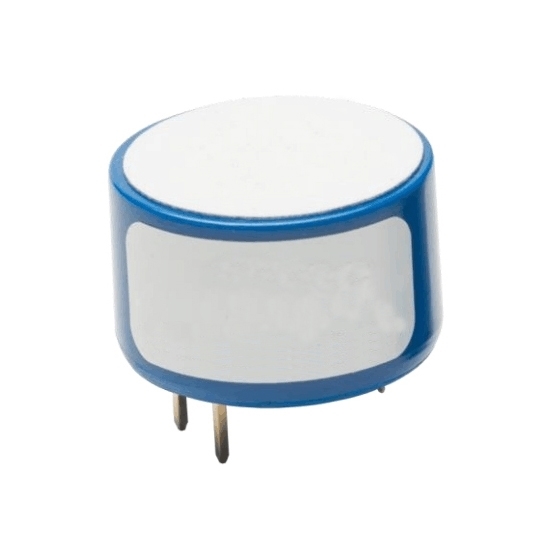

    Fluorescent Oxygen Sensor, 0-300mbar, 0-25%

    $100.31
    Good fluorescent oxygen sensor for sale. It is capable of measuring oxygen concentrations from 0 to 25% and oxygen partial pressures ranging from 0 to 300mbar. It operates within a voltage range of 4.75~5.25V and features an average current consumption of 7.5mA, with a peak current of 32mA. The sensor offers high precision, with an oxygen partial pressure accuracy of less than 2% FS and an atmospheric pressure accuracy of ±5mbar. Suitable for scenarios such as oxygen generators, incubators, oxygen concentrators.
    SKU: ATO-OS-X4000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The fluorescent oxygen sensor measures 0-25% oxygen and 0-300mbar partial pressure, operating at 4.75~5.25V with 7.5mA average current. It is precise and ideal for oxygen devices, glove boxes, exhaust systems, and portable monitors.

    Specification

    Model ATO-AOX4000
    Operating Voltage 4.75~5.25V
    Operating Current Average: 7.5mA; Peak: 32mA
    Oxygen Concentration Range 0~25%
    Oxygen Partial Pressure Range 0~300mbar
    Atmospheric Pressure Range 500~1200mbar
    Oxygen Partial Pressure Accuracy <2%FS
    Atmospheric Pressure Accuracy ±5mbar
    Operating Environment -30°C~60°C; 0~95%RH
    Storage Environment -30°C~60°C; 0~95%RH
    Sensor Lifetime >6 years


    Feature

    • Long Lifespan: Designed for extended operational durability, ensuring reliable performance over time.
    • Non-Consumptive: Does not consume oxygen during measurement, making it ideal for long-term monitoring applications.
    • Eco-Friendly Design: Free from lead or other toxic materials, ensuring compliance with environmental standards and safe use.
    • Cross-Gas Immunity: Highly resistant to interference from other gases, ensuring accurate oxygen detection in complex environments.
    • Pressure and Temperature Compensation: Integrated compensation mechanisms for oxygen partial pressure and temperature variations, ensuring precise readings in fluctuating conditions.
    • Insensitive to Atmospheric Pressure Changes: Provides high accuracy without being affected by changes in atmospheric pressure.
    • Drift-Free Performance: Stable and reliable measurements with no signal drift over time, reducing the need for frequent recalibration.
    • Low Power Consumption: Optimized for energy-efficient operation, suitable for battery-powered and portable devices.
    • Rapid Response: Quickly detects and reports oxygen concentration changes, ideal for dynamic environments.

    Size (Unit:mm)

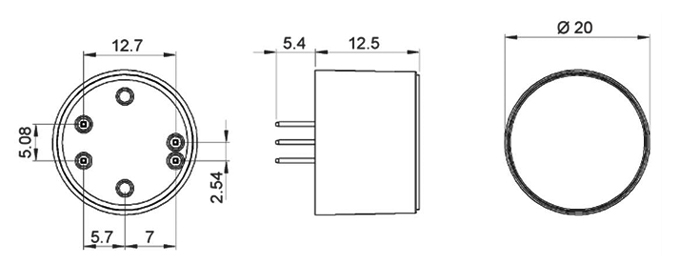

    Fluorescent oxygen sensor size

    Interface Definition

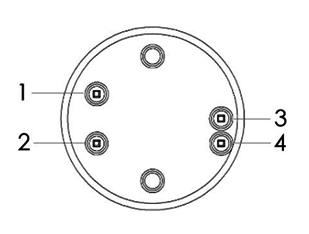

    Fluorescent oxygen sensor interface definition

    Pin Number Function
    1 +5V
    2 GND
    3 UART TX
    4 UART RX


    Application

    Fluorescent oxygen sensor application

    Tips: Why is the sensor not affected by other gases?

    The sensor's design incorporates a high level of cross-gas immunity, meaning it is selectively sensitive to oxygen molecules while ignoring other gases that might be present in the environment. This is achieved through its specialized fluorescence-based detection technology, which relies on oxygen-specific interactions rather than chemical reactions. This makes the sensor highly reliable in environments where multiple gases coexist, such as industrial processing plants, automotive exhaust monitoring, or inert gas chambers.
