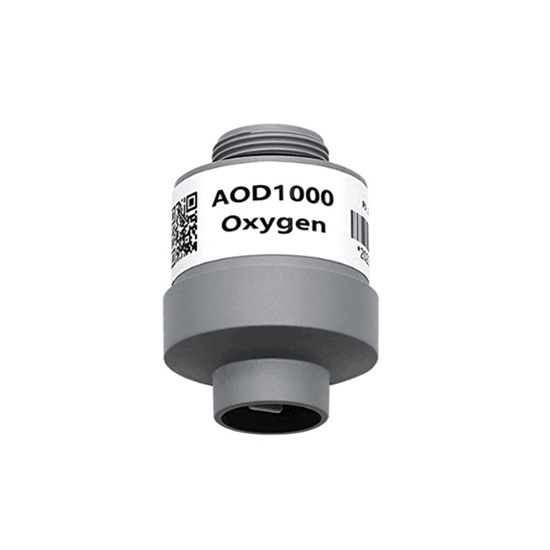

    High Pressure Oxygen Sensor, 0.8-7 bar, 0-100%

    $211.42
    The high pressure oxygen sensor functions within a pressure range of 0.8~7.0 bar, a operating temperature range of 0~45°C. The oxygen sensor operates on a voltage divider electrochemical principle with an output voltage range of 8.5~14mV (in air) and a measurement range of 0~100%. The sensor includes temperature compensation for 0~50°C and supports a load resistance of >10kΩ. Widely used for oxygen monitoring in high-pressure equipment, such as high-pressure oxygen chamber, testing ships, tankers and other equipment.
    SKU: ATO-OS-D1000
    30-day Returns
    Free Shipping

    The high-pressure oxygen sensor (0.8~7.0 bar) measures 0100% oxygen with 8.5~14mV output. Designed for high-pressure systems, it’s ideal for oxygen chambers, tankers, and testing ships.

    Specification

    Model ATO-AOD1000
    Working Principle Voltage Divider Electrochemical
    Output Voltage 8.5~14mV (in air)
    Measurement Range 0~100%
    Response Time (T) <10s full range
    Linearity <2% of full scale
    Temperature Compensation 0 (Equivalent, 0~50°C)
    Load Resistance >10kΩ
    Interface Molex 3-pin connector (2.54mm)
    Housing Material Gray ABS
    Weight Approx. 25g
    Operating Temperature Range 0~45°C
    Operating Pressure Range 0.8~7.0 bar
    Operating Humidity Range 0~99% RH (non-condensing)
    Recommended Storage Temperature 0~25°C
    Expected Lifetime 42 months


    Feature

    • Operates in High-Pressure Environments: Designed to function reliably within a pressure range of 0.8 to 7 bar.
    • Fast Response: Delivers quick and accurate oxygen measurements with a response time of less than 10 seconds.
    • Temperature Compensation: Ensures consistent performance across a wide temperature range, enhancing measurement accuracy.
    • Outstanding Long-Term Stability: Maintains reliable performance over extended periods, minimizing the need for frequent recalibration.
    • Full-Scale Linear Output: Provides precise and proportional output across the entire measurement range of 0-100%.

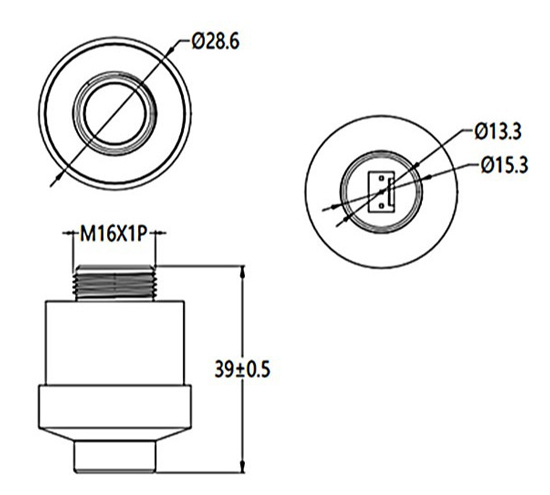

    Size (Unit:mm)

    High pressure oxygen sensor size

    Interface Definition

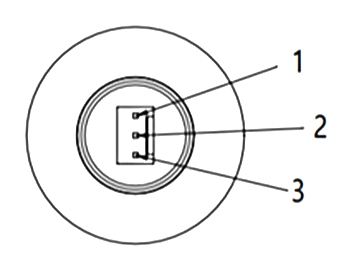

    High pressure oxygen sensor wire

    1. Negative pin 2. Negative pin 3. Positive pin

    Application

    High pressure oxygen sensor application

    Tips: How is the sensor integrated into existing systems?

    The sensor is easy to set up with its Molex 3-pin connector (2.54mm), which provides a strong and reliable connection. It has an output voltage of 8.5~14mV (in air), making it work well with many monitoring systems. Its small size makes it simple to install in both new and existing setups. The clear interface and straightforward wiring make it a great choice for improving current systems without major changes.
