    Laser Fiber Optic Sensor with Amplifier, NPN

    $219.63
    Laser fiber amplifier and probe perfect combination, support multi-function NPN output (normally open / normally closed can be switched), this reflective fiber optic sensor and fiber amplifier supporting the use of fast response time of 1ms, switching frequency of up to 1kHz, to ensure fast and stable signal transmission.
    SKU: ATO-FIBER-LFM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-efficiency reflective fiber optic sensor with laser fiber sensor and amplifier kit, combining excellent performance and reliable design, suitable for a variety of precision inspection applications. Built-in overload protection and <1.5V low dropout design ensure safe and stable operation.

    Specification

    Model ATO-LV-WA1+LV200
    Output Method NPN (normally open and normally closed switchable)
    Working Voltage 12-24VDC
    No Load Current <20mA
    Maximum Load Current 100mA
    Voltage Drop <1.5V
    Switching Frequency 1kHz
    Response Time 1ms
    Switching Fluctuation <10%(Sr)
    Repeatability <5%(Sr)
    Protection Class IP65
    Operating Ambient Temperature -10°C~+55°C
    Short Circuit Protection Support
    Overload Current Protection 220mA
    Standard Cable Length 2m
    Shell Material PBT
    Certificates CE
    Dimension 75*28*10.5mm (Amplifier) + 25*22*10mm (Laser Probe)
    Net Weight 87g approx.

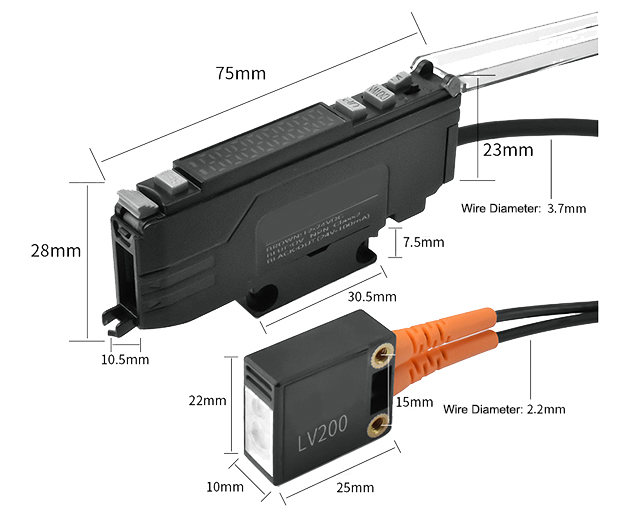

    Dimensional Drawing (unit: mm)

    Laser fiber optic amplifier size

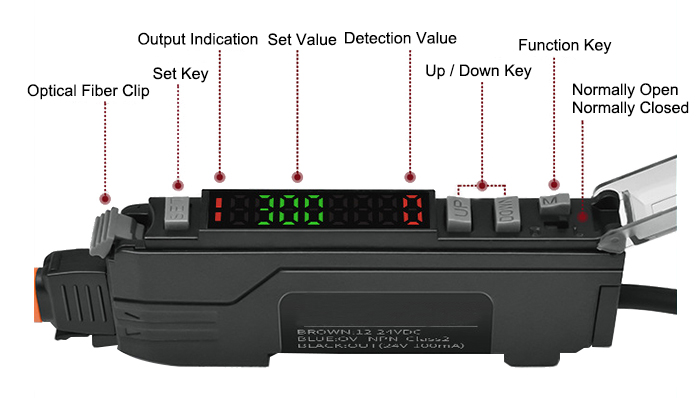

    Details

    Laser fiber optic amplifier detail

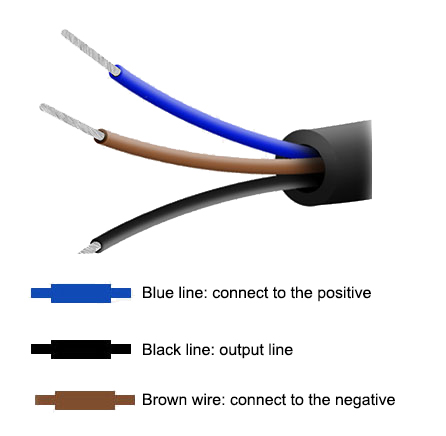

    Wiring Drawing

    Laser fiber optic amplifier wiring drawing

    Applications

    High temperature fiber optic sensor application

    Tips: What is a fiber optic amplifier?

    Fiber optic amplifier is a device that uses fiber optic media to amplify optical signals and is commonly used in the field of optical communications and lasers. The basic principle is to optically gain the input optical signal by doping the optical fiber with rare earth elements (such as erbium, thulium or ytterbium) under the excitation of pump laser. Fiber amplifiers do not need to convert optical signals into electrical signals, and directly amplify optical signals, thereby reducing signal loss and improving transmission efficiency.
