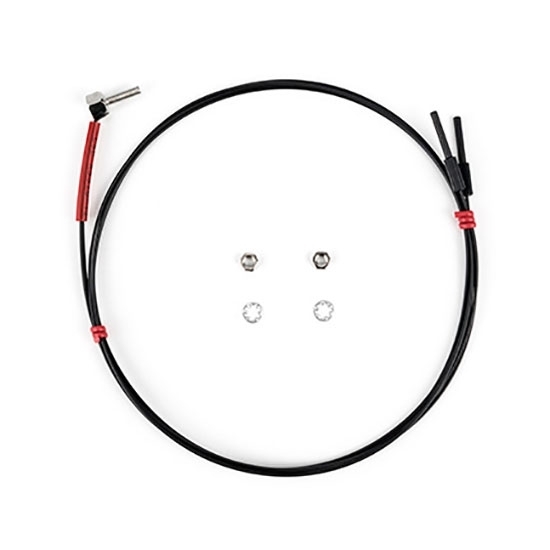

Right Angle Fiber Optic Sensor

$87.57
ATO's high quality right angle fiber optic sensors are available in a variety of sizes: M3*0.5mm, M4*0.75mm, and M6*0.75mm thread sizes, with fiber optic cable lengths of 1m and 2m, and precisely adjustable sensing distances (up to 64mm), making them suitable for complex scenarios.
*
*
*
SKU: ATO-FIBER-RAS
30-day Returns
Free Shipping
Delivery date: 6-12 days

Great price right angle fiber optic sensor for sale, enjoy the perfect combination of high sensitivity and durability! Equipped with a variety of fiber lengths (1M or 2M) to choose from. Fiber optic core diameter up to 1.0mm, detection distance 0~48/64mm, even as small as Φ0.1mm target can be accurately captured. Stainless steel and copper-nickel plated tubes to enhance pressure resistance and durability. CE certification ensures high quality and safety.

Specification

Model ATO-LSDRS310-TZ ATO-LSDRS410-TZ ATO-LSDRS610-TZ ATO-LSDRS320-TZ ATO-LSDRS420-TZ ATO-LSDRS620-TZ
Thread Size M3*0.5mm M4*0.75mm M6*0.75mm M3*0.5mm M4*0.75mm M6*0.75mm
Fiber Optic Cable Length 1M 1M 1M 2M 2M 2M
Fiber Core 0.5mm 0.5mm 1.0mm 0.5mm 0.5mm 1.0mm
External Diameter 1.0mm 1.0mm 2.2mm 1.0mm 1.0mm 2.2mm
Sensing Distance 5~60mm±10% 10~60mm±10% 20~80mm±10% 5~60mm±10% 10~60mm±10% 20~80mm±10%
Adjustable Sensing Distance 0~48mm 0~48mm 0~64mm 0~48mm 0~48mm 0~64mm
Standard Detector 200*200mm white cardboard
Fiber Material Plastics
Minimum Detection Object Φ0.1mm
Sheath Color Red
Certification CE
Fiber Tube Material Stainless steel Stainless steel Copper nickel plating Stainless steel Stainless steel Copper nickel plating
Product Size M3*16.5-TZ M4*15.5-TZ M6*16.5-TZ M3*16.5-TZ M4*15.5-TZ M6*16.5-TZ
Net Weight 3.0~4.0g 4.0~6.6g 11.0~20.0g 3.0~4.0g 4.0~6.6g 11.0~20.0g

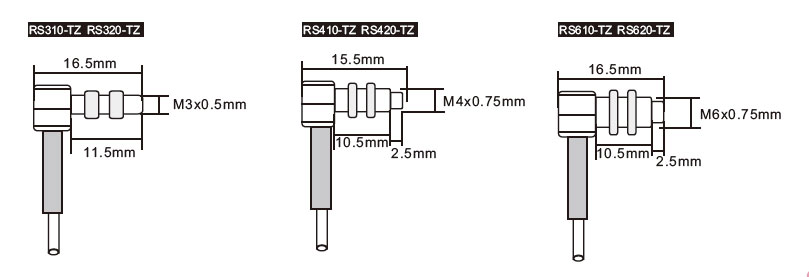

Dimensional Drawing (unit: mm)

Right angle fiber optic sensor size

Features

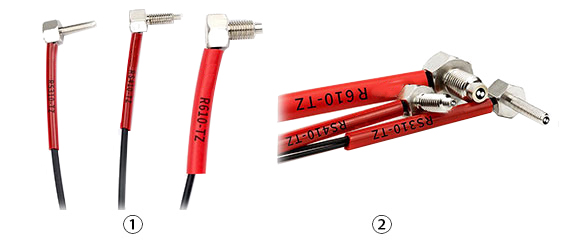

Right angle fiber optic sensor feature

  1. Anti-pressure and Aging Resistance: M3/M4 head is made of stainless steel, strong and durable without rusting, M6 head is made of pure copper with nickel-plated surface for aging resistance.
  2. Transparency: Highly transmissive plastic fiber core, stable signal transmission, low loss and good toughness is not easy to break.

Applications

High temperature fiber optic sensor application

Tips: How to choose a suitable right-angle fiber optic sensor?

When choosing a fiber optic sensor, you should focus on the following factors:

  • Detection distance: Make sure the detection range of the fiber optic transmitter meets the application requirements.
  • Light characteristics: For example, whether a model with high sensitivity or interference immunity is required.
  • Environmental conditions: Such as temperature, humidity and whether an oil and vibration resistant design is required.

In addition, depending on the specific application, different fiber optic materials (plastic or glass) and signal processing modules can be selected for optimal performance.
