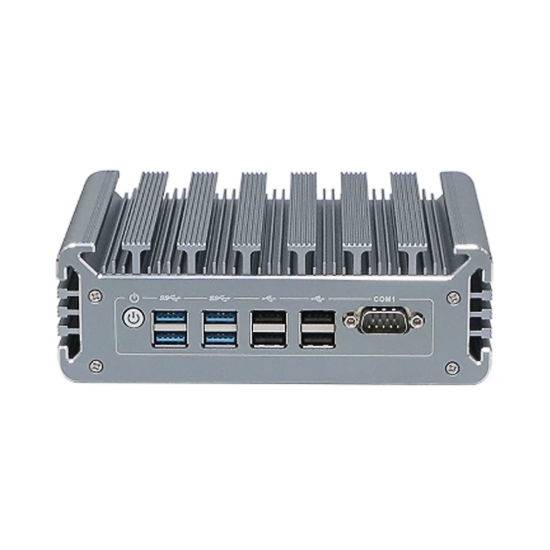

NOT AVAILABLE! For the Updated version, Please go to the page: Embedded Fanless Industrial PC, Core i5, Linux/Win 7.

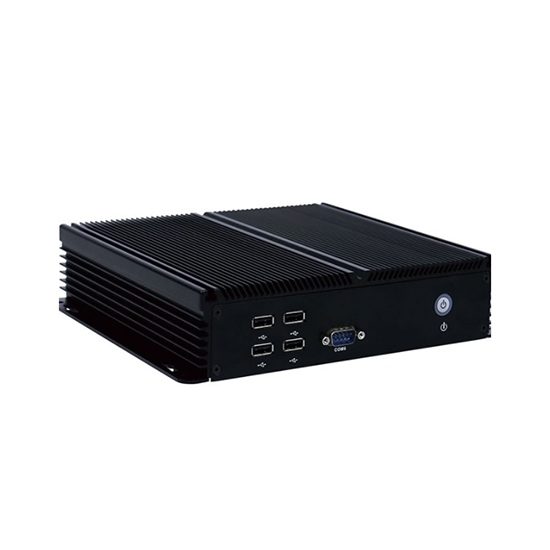

Industrial PC Features
- Equip with Intel Core i5 4300U dual core 1.9 GHz CPU
- All aluminum structure, fanless design
- Support 1*DDR3L 1333/1600 MHz, Max 8 GB memory
- Multi-interface, 4*USB2.0, 2*USB3.0, 1*VGA, 1*HD
- Support 2 Lan and 6 COM (COM 3 support RS232/422/485 optional)
- Support WiFi/3G/4G
- Support Win7/ win10/ Linux (Centos or Ubuntu) system
Specification
Model |
ATO-IBOX205Plus |
Case Color |
Black |
Material |
High quality all aluminum |
CPU |
Adopt Intel Core i5 4300U dual core 1.9 GHz |
Chipset |
Adopt Intel express chipset |
RAM |
Support 1*DDR3L 1333/1600 MHz, Max 8 GB |
Storage |
Support 1*MSATA, 1*2.5 inch SSD/HDD (2*2.5 inch SSD/HDD optional) |
Display Interface |
1*VGA, 1*HD (Support synchronous and asynchronous dual display) |
I/O |
4*USB2.0, 2*USB3.0 |
1*Power Switch |
6*COM (COM 3 support RS232/422/485 optional) |
2*Lan |
1*VGA |
1*HD |
1*DC 12V |
1*Mic |
1*Line Out |
Expansion |
1*MINI-PCIE (support MSATA) |
1*MINI-PCIE (WiFi/3G/4G optional) |
Network |
2*Intel i211-AT Lan |
WDT |
Support hardware reset (256 level, 0~255 sec) |
Power Supply |
DC 12V |
Operating System |
Win7/ win10/ Linux (Centos or Ubuntu) system |
BIOS |
64MB Flash ROM |
Working Temperature |
-10°C ~ 60°C |
Working Humidity |
0% - 95% relative humidity, non-condensing |
Size |
214*200*54 mm |
Weight |
2.0 Kg |
Note:

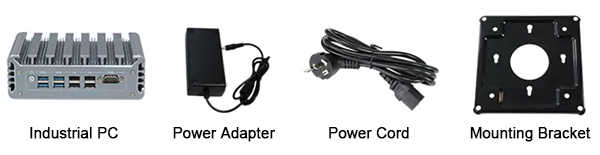

*Packing list included PC + Power Adapter + Power Cord + CD Driver.
*RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
*Need more fanless industrial PCs models information, please check the Model Brochure.

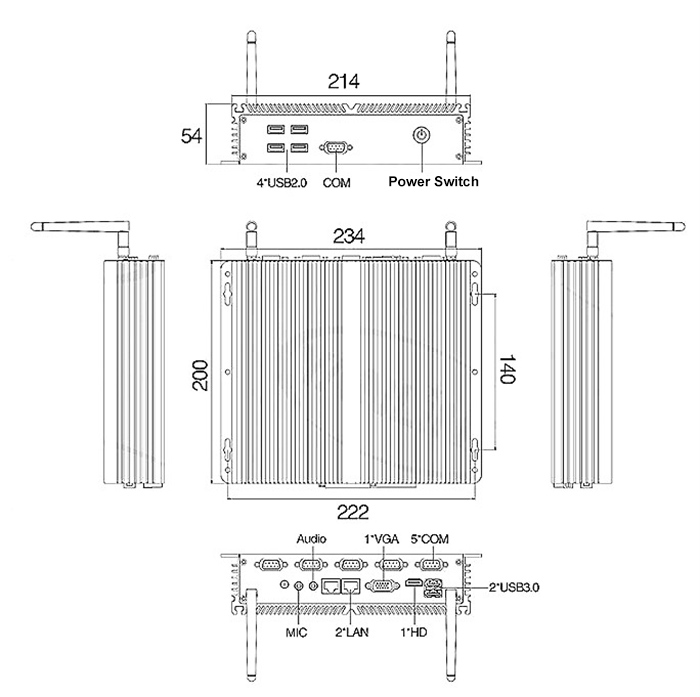

Industrial PC Dimension
Tips:
In terms of power supply, the power supply of industrial PC is different from that of ordinary power supply, and the resistance capacitance and coil used in it are several levels higher than that of ordinary household. The carrying capacity is much larger. The IPC fanless embedded CPU and memory are integrated on the motherboard and use laptop hard disks. CF cards and SSD solid-state hard disks are also used. The power supply is usually 5-30V DC power supply. The industrial PC has a wide range of applications, its slot plug in motion control card can control the stepper or servo motor system, such as dispensing machine, winding machine, printing machine, SMT machine vision, PCB inspection machine, fast walk silk machine, laser cutting machine, engraving machine and other equipment.
