Embedded Industrial PC, Fanless, core i3 i5, 6 COM, 2 LAN

5 out of 5 based on 1 reviews | Write a review
$1,063.56
The mini fanless embedded industrial computer on sale, it adopts Intel Skylake 6th Core i3-6100U/i5-6200U dual core four threads. 1*VGA +1*HD port +4*USB2.0 +4*USB3.0 +2*LAN +6*COM (COM2 can support RS485) rich interfaces, no noise during operation, suitable for industrial applications.
*
*
SKU: ATO-IPC-601P
Availability: Out of stock
30-day Returns
Free Shipping
Delivery date: 6-12 days

NOT AVAILABLE! For the Updated version, Please go to the page: Mini Fanless Industrial PC, Core i3 i5, Linux/Win 7/Win 10.

Industrial PC Features

  • Intel Skylake 6th Core i3-6100U, Core i5-6200U is optional
  • Support DDR4 Ram Slot, Max 16G; support 1*2.5'' HDD/SSD
  • 1*VGA+1*HD port+4*USB2.0+4*USB3.0+2*LAN+6*COM (COM2 can support RS485)
  • AMI 64Mbit SMT Flash ROM
  • 1*MSATA, 1*Mini-PCIE, support wifi/3G/4G, 1*Mini-SATA, 1*SATA
  • 2*Intel i211 AT 1000M network card
  • DC-IN 12V/12.5A power adapter
  • Support windows 7, windows 10, linux (Centos or Ubuntu) system

Specification

Model ATO-IBOX601plus
Material of Case High-quality pure aluminum
CPU Adopt Intel Skylake 6th Core i3-6100U, i5-6200U
Chipeset Intel express chipset
RAM 1*SO-DIMM DDR4, support Max 16G
Display Integrated Intel HD Graphic card 520, 1*VGA, 1*HD
Expansion 1*MINI-PCIE (support WiFi/3G/4G)
Storage 1*SATA3.0 port, 1*MSATA
Audio Reaktek HD ALC662
Network 2*Intel i211 AT 10/100/1000M Lan
Usable System Win7/ win10/ Linux (Centos or Ubuntu) system
HDD 500G (optional 320G~1T)
SSD 16G/32G/64G/128G/256G optional
I/O 4*usb2.0
4*usb3.0
1*DC-IN 12V
2*RJ-45 lan
1*VGA
1*HD port
6*COM (COM2 support RS422/485)
1*Audio
1*Mic
BIOS AMI 64Mbit SMT Flash ROM
WDT Support hardware reset (256 level, 0~255 sec)
Power Supply DC 12V
Operation Temp -10°C ~ 50°C
Humidity 0% - 95% relative humidity, non-condensing
Dimension 264*166*70.5mm (L*W*H)
Weight 3.0 Kg

Note:
*Packing list included PC + Power Adapter + Power Cord + CD Driver.

*RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
*Need more fanless industrial PCs models information, please check the Model Brochure.

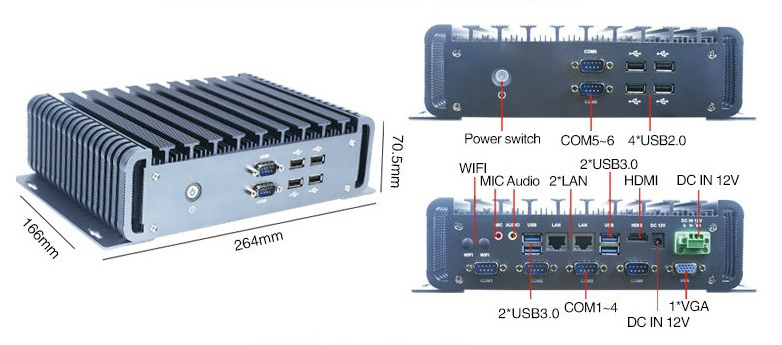

Industrial PC Rich Interfaces
fanless industrial pc rich interfaces5 tips for selecting an industrial PC

  1. Industrial PCs usually need to be installed in racks or other narrow spaces, so first select the product specifications according to the size of field installations.
  2. According to the feasible installation method on site, it can be divided into wall-mounted type, rack type, desktop and embedded. Meanwhile, it should also consider the outlet mode to avoid the difficulty of wiring, such as the front line and the back line.
  3. Environmental requirements. The industrial PC is different from the ordinary civil computer because it can be used in harsh environments, such as ultra-high or ultra-low temperature, high dust, high vibration etc.. Therefore, you should carefully check whether its parameters can meet the requirements of your application environment when selecting an industrial PC.
  4. Technical parameters. Like choosing a personal computer, you should also look at the configuration: The CPU, storage, memory, software, and so on. When selecting these parameters, choose according to the application requirements of industrial PC.
  5. Scalability. It is necessary to consider which type of interface is required for the IPC, and whether there are RS-232/485, CPCI, USB, Profinet and other types of interfaces.
