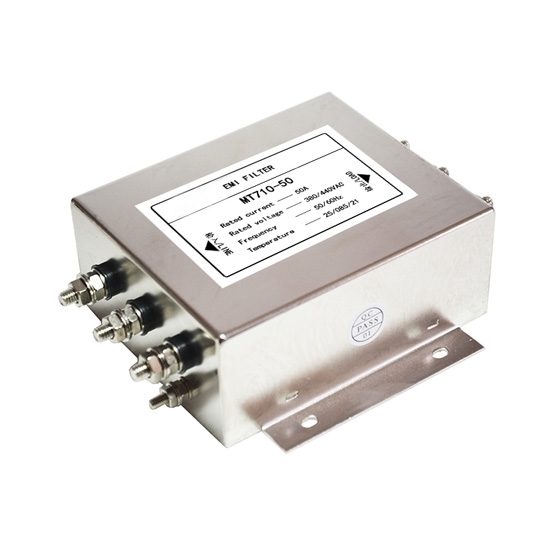

    EMI Line Filter, 50A, 3 phase

    5 out of 5 based on 1 reviews | Write a review
    $140.61
    Reliable single-stage EMI power line filter for 3-phase 3-wire electrical equipment, rated current 50A, voltage rating to 440V AC, threaded stud connection and compact structure, high performance and favorable price.
    SKU: ATO-EMI-1050
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    50A EMI power line filter can perform well in the differential mode and common mode attenuation and provide effective shielding for three-phase three-wire electronic devices or equipment, like 3-phase motor drives, UPS, printing equipment, packaging equipment, industrial air conditioners, etc.

    Specification

    Model ATO-MT710-50
    Filter Type EMI
    Configuration Single Stage
    Rated Current @ 40℃ 50A
    Rated Voltage 250/440V AC
    Operating Frequency 50/60Hz
    Phase Three Phase Three Wire
    Leakage Current ≤10mA @ 250V AC 50Hz 20℃
    Filter Range 150KHz-30MHz
    Hipot Rating (one minute) Line to Line 1450V DC
    Line to Ground 2250V DC
    Climatic Category 25/085/21
    Working Temperature -25°C~+85°C
    Output Termainal Threaded stud M6
    Weight 1kg
    Dimension See below

    Dimensions (Unit: mm)

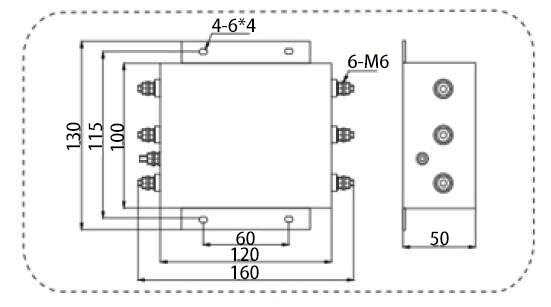

    50A 3-phase EMI Line Filter Dimension

    Electrical Schematic

    Three phase emi filter electrical schematic

    Insertion Loss Table (in 50Ω system acccording to IEC/CISPR No.17)

    6A 10A 20A 30A Power Line Filter Insertion Loss Table

    40A 50A 100A EMI Line Filter Insertion Loss Table

    Tips: EMI power line filter - common mode performance

    Common mode filtering performance of EMI line filter which is used for electrical equipment power is usually restricted by common mode capacitor. Capacitor means the bridge joint capacitor between phase wire or middle wire and safety ground. Grounding current mainly means the current flows through common mode capacitor, and the current flowing through capacitor is decided by power voltage, power frequency and capacitor value. Since leakage current amount is very important to personal safety, different countries have strict stipulation for grounding leakage current of different electrical equipment. If the rule for maximum leakage current is made, then it needs to figure out maximum allowable grounding capacitor value. Besides, the capacitor is required to have enough margins for electronic and mechanical safety, to avoid puncture and short circuit under extremely harsh condition. Because this kind of capacitor should be connected to safe grounding and the equipment housing should be connected to safe grounding, this capacitor pressure resistance performance is very important to protect personal safety. Once equipment or device insulation loses effect, it may endanger personal safety.
