    10A 3-phase EMI Line Filter, 2 Stage

    5 out of 5 based on 1 reviews | Write a review
    $117.92
    10A 2-stage EMI line filter, 3-phase 3-wire or 3-phase 4-wire, rated voltage 250/440V AC 50/60Hz, excellent performance of EMI suppression in the industrial equipment, compact size, stud connection, low price and high reliability.
    *
    SKU: ATO-EMI-2010
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    10 Amp dual-stage EMI power line filter is suitable for 3-phase 3-wire or 3-phase 4-wire AC power system, and it is widely used in various electrical equipment, including printing equipment, packaging equipment, textile equipment, industrial air conditioners, UPS, motors, servo systems, communication equipment, variable frequency device, electric drives, etc.

    Specification

    Model ATO-MT720-10 ATO-MT820-10
    Configuration 2 Stage 2 Stage
    Rated Current @ 40℃ 10A 10A
    Rated Voltage 250/440V AC 440V AC
    Operating Frequency 50/60Hz 50/60Hz
    Phase Three Phase Three Wire Three Phase Four Wire
    Leakage Current (250VAC 50Hz @ 20℃) ≤4.0mA ≤2.0mA
    Filter Range 150KHz-30MHz 150KHz-30MHz
    Hipot Rating (one minute) Line to Line: 2250VDC 3S
    Line to Ground: 2700VDC 3S
    Line to Line: 2250V DC
    Line to Neutral: 1760V DC
    Line to Ground: 2700V DC
    Climatic Category 25/085/21 25/085/21
    Working Temperature -25°C~+85°C -25°C~+85°C
    Output Termainal Threaded stud Threaded stud
    Weight 1kg 1kg
    Dimension See below See below

    Dimensions (Unit: mm)

    • 3-phase 3-wire line filter

    10A 3-Phase 3-Wire 2-Stage Power Line Filter Dimension

    • 3-phase 4-wire line filter

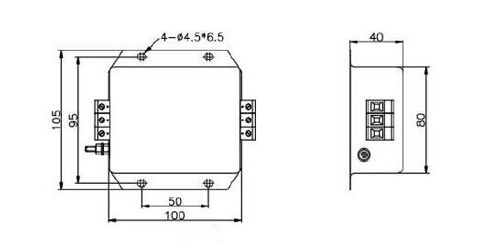

    10A 20A 3-Phase 4-Wire EMI Power Line Filter Dimension

    Electrical Schematic

    • 3-phase 3-wire line filter

    3-phase 3-Wire 2-stage Power Line Filter Electrical Schematic



    • 3-phase 4-wire line filter

    10A 3-Phase 4-Wire EMI Power Line Filter Electrical Schematic

    Tips: Passive filter versus active filter

    Passive filter advantages are simple circuit, no need of DC power supply, and high reliability. It has its own disadvantages: signal inside pass band has energy consumption; load effect is obvious; it is easy to have electromagnetic induction when using electrical-induce element. When inductance(L) is large, filter dimension and weight is also large, not suitable in low frequency field.

    Active filter advantages: signal inside pass band has no energy consumption, and also can be amplified; load effect is not obvious, and mutual effect is very small for multilevel linkage. Taking cascading method is easy to constitute high-stage filter, which is in small dimension, light weight, no need of magnetic shielding (due to no use of inductance element). It also has some disadvantages. Since it is limited by band width of active component in the range of pass band, it needs to be energized by DC power supply. Thus reliability is not as good as passive filter. It is not suitable in high-voltage, high-frequency, large-power occasions.

    Existing reviews of 10A 3-phase EMI Line Filter, 2 Stage
    How to install a 10A three-phase EMI line filter?
    I bought this 10A three-phase EMI line filter for the first time. How do I install it?
    From: Mckenney | Date: 19/10/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Only need four simple steps to complete the installation:
    The first step: Fix.
    Step 2: Grounding.
    The third step: Phase line connection.
    Step 4: Fasten the bolts.
    Load more reviews...
    Write your review for 10A 3-phase EMI Line Filter, 2 Stage
    • Only registered users can write reviews
    • Bad
    • Excellent
    Customers who bought this item also bought

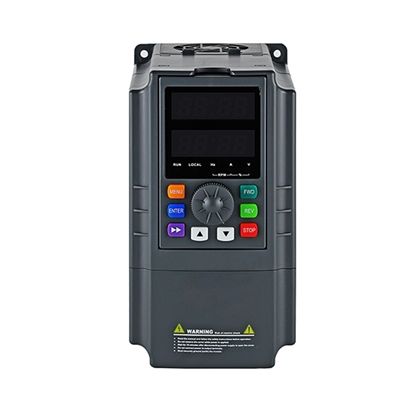

    2 hp VFD, 1-Phase 220V to 3-Phase 380V VFD
