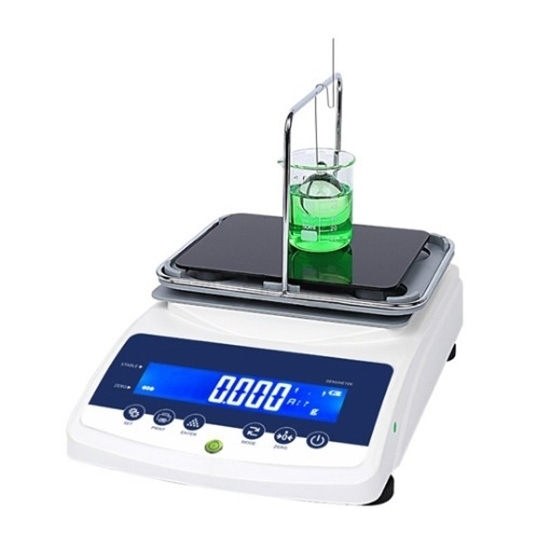

Electronic liquid density meter is widely used in university laboratories, petrochemical, food processing, sewage treatment, new energy, medicine and environmental protection, scientific research units and other industries.
Features
- The electronic liquid density meter is sensitive, highly accurate, and directly reads density without additional conversion.
- It uses an integrated precision weighing unit, equipped with a high-performance single-chip microprocessor, and a built-in overload protection device to effectively ensure measurement precision and equipment stability.
- The electronic liquid density meter is equipped with three liquid measurement modes, compatible with different standard weights, and adapts to a variety of testing needs.
- It has three compensation settings for temperature adjustment, measurement medium density adjustment, and waterproof medium treatment to ensure more accurate measurement data.
- The liquid density meter can measure various liquids with densities greater than 1 and less than 1, suitable for different application scenarios.
- It is equipped with an RS-232 interface that can be connected to a printer or PC for easy data storage and analysis.
Specification
Model |
ATO-SJ-300Y |
ATO-SJ-600Y |
Operation mode |
Button operation |
Weighing Range |
0.01-300g |
0.01-600g |
Density Accuracy |
0.001g/cm3 |
Measuring Time |
about 5 seconds |
Density range |
Density >1, <1 can be tested |
Results Display |
Density value, baume degree, concentration |
Measuring Principle |
Archimedean principle |
Measurement Result Verification Method |
Distilled water verification |
Output Port |
RS-232 Interface |
Power Supply |
Internal battery |
Details

Accessories

Tips: Working principle of electronic liquid density meter
The electronic liquid density meter uses the Archimedes principle, combined with a high-precision electronic weighing system, to calculate the liquid density by measuring the weight difference between the standard weight in the air and in the liquid. The instrument has a built-in intelligent microprocessor that can automatically calculate and directly read the density value without manual conversion. Some models are also equipped with a temperature compensation function to correct the measurement error caused by temperature changes to ensure accurate and reliable data. The device is widely used in chemical, food, pharmaceutical, environmental protection and other industries, suitable for quality control, formula modulation, scientific research experiments and other scenarios, to achieve fast, accurate and stable liquid density measurement.
