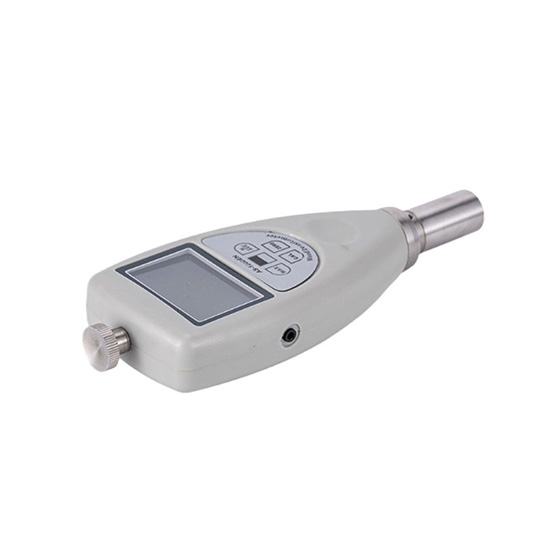

Digital Wood Density Meter, 0.01g/cm³-1.2g/cm³

$908.92
Digital wood density meter uses a digital display screen, with a wide measuring range of 0.01g/cm³~1.2g/cm³ and an accuracy of ≤±0.01g/cm³, which can accurately detect wood density. It is suitable for working environments of 0℃~50℃, can work under humidity conditions of <80%RH, is light in weight and easy to carry.
SKU: ATO-DENSITY-120DEN
30-day Returns
Free Shipping
Delivery date: 6-12 days

The density meter obtains the density value of wood through the indentation measurement principle and is widely used in wood testing, quality control and scientific research experiments, providing reliable data support.

Features

  • The wood density meter can automatically calculate the average value of multiple measurement results to improve the accuracy of the data.
  • The digital wood density meter can lock the current measurement value, which is convenient for users to view and record data.
  • When the battery voltage is too low, the wood density meter will issue a warning to ensure that the measurement process is not affected.
  • It uses USB data line output and RS-232 data line output to communicate with the PC, which is convenient for data analysis and processing.

Specification

Model ATO-AS-120DEN
Accuracy ≤±0.01g/cm3
Display parameters Hardness value/average value/* * value
Measurement unit g/cm3
Measuring range 0.01g/cm3~1.2g/cm3
Resolution 0.01g/cm3
Low voltage prompt
Auto power off
Work environment Temperature: 0℃~50℃, Humidity: <80%RH
Power supply 2* AAA batteries
Dimensions 176mm×65mm×27mm
Weight 170g (without battery)
Standard configuration Host machine
Convenient hand box (B04)
Instruction manual
Optional selection RS232C Communication cables and software

Tip: What is an indentation density meter?

An indentation density meter is an instrument that calculates the density of a material by measuring the indentation depth or deformation produced by the material after being compressed. For wood density measurement, it usually uses a probe or indenter of a specific shape to apply a certain pressure to the wood, and according to the change in the depth, area or volume of the indentation, combined with a known calculation formula or calibration curve, the density value of the wood is obtained. This method is easy to operate and suitable for rapid detection of the density of different woods. It is widely used in wood processing, furniture manufacturing, scientific research experiments and quality control.
