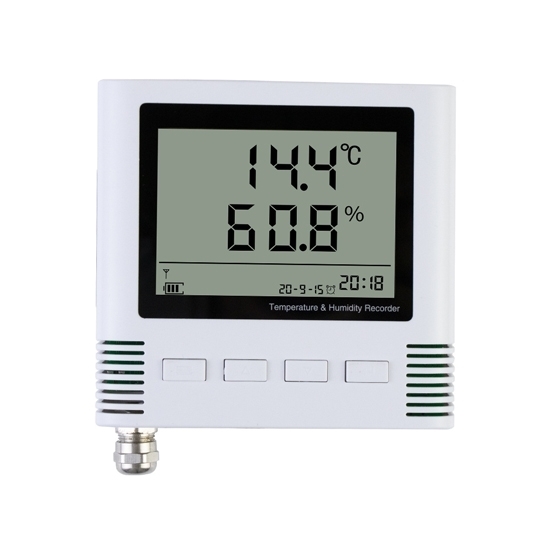

Digital Temperature and Humidity Data Logger

Digital temperature and humidity data logger is mainly used in storage and transportation of food, pharmaceuticals, greenhouses, chemical supplies and other products, and can be combined with host computer software and Internet of Things technology to effectively perform statistical analysis on temperature and humidity data.

Specification

• Model: ATO-BRW100-2001D
• Range: Built-in Probe: 0-100%RH,-20-70℃; External Probe: 0-100%RH,-40-100℃
• Temperature Measurement Accuracy (Optional): 0.1℃/ 0.3℃
• Humidity Accuracy (Optional): 1.5%RH/ 2%RH
• Power Supply Mode: Battery Powered
• Data Viewing Method: Digital Display, Host Computer Software, Mobile Terminal, Cloud Platform
• Wired Communication: RS485/ Ethernet
• Operation Mode: Button
• Data Export Interface: USB
• Battery Standby Current: 300uA
• Display Mode: LCD
• Wireless Transmission Method: NB/4G
• Number of Channels: 1-4 Channel
• Storage Capacity: 1 Million Sets
• Weight: 1kg

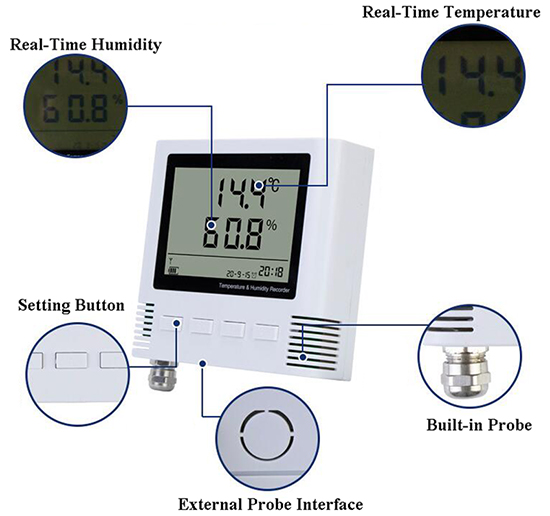

Details

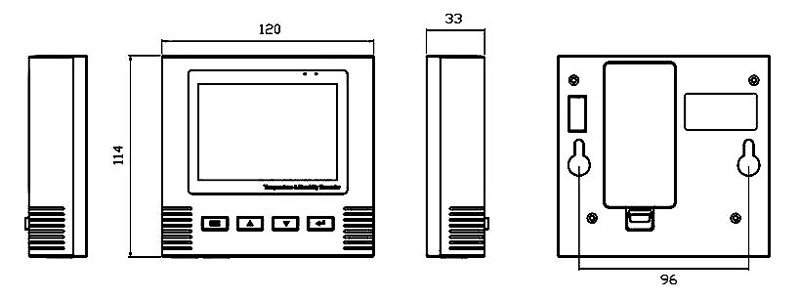

Dimensions (Unit: mm)

Tips: What are the types of temperature data loggers?

• Temperature and humidity data logger with paper: Draw a curve on the recording paper through a mechanical recording pen, so as to achieve the purpose of recording and saving data.
• Paperless temperature and humidity data logger: adopts microprocessor, display screen and memory. It is the earliest title or collective name of all electronic temperature recorders. The display method can be digital or graphic, and the display screen can be black and white, blue screen or color.
• Large-capacity temperature and humidity recorder: It is composed of microprocessor, LCD, SD or TF card memory, with its own file system, and data is directly stored as files, such as txt., doc. files, etc. At the same time, it is not affected by thousands of traditional recording groups or the limit of tens of thousands of groups, according to the capacity of the memory card to achieve large-capacity storage.
• Cloud storage temperature and humidity recorder: upload data to cloud server in real time through GPRS to realize data cloud storage. Users can query data anytime and anywhere, and can download data for report printing. The storage capacity is not limited by the device hardware, enabling truly unlimited data storage.
• Multi-probe temperature and humidity data logger: The data is transmitted to the cloud platform through WiFi, Ethernet, and GPRS to realize cloud storage of data. Users can query data anytime and anywhere, and can download data for report printing. The storage capacity is not limited by the device hardware, enabling truly unlimited data storage.
