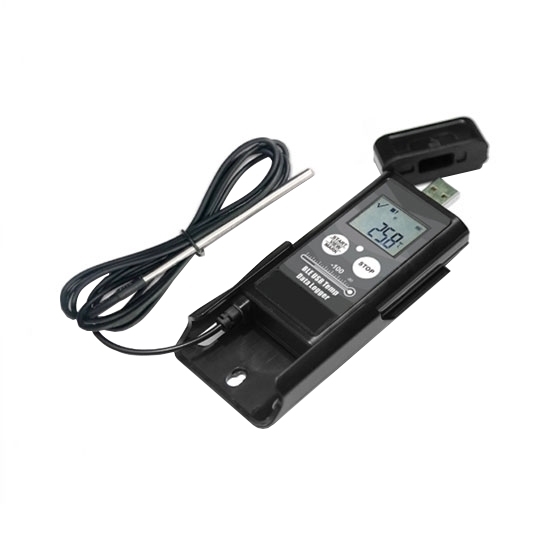

    Bluetooth USB Temperature Data Logger with Probe

    5 out of 5 based on 1 reviews | Write a review
    $69.59
    Favorable price Bluetooth USB temperature data logger with 1.5m extended probe, optional measuring range of -100℃ ~ +120℃, -200℃ ~ +120℃, this ultra-low temp recorder can show you real time digital data on LCD display and automatically generate PDF and CSV report on the computer.
    *
    SKU: ATO-TDL-U06L
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 20-30 days

    Temperature data logger with 1.5m external temperature probe is perfect for monitoring cryogenic freezers in -200℃. It has flight mode for air transportation, USB and Bluetooth connection to get PDF/CSV report or logging data.

    Specification

    Model ATO-TDL-U06L100 ATO-TDL-U06L200
    Usage Type Multi-use
    Measuring Range -100℃ ~ +120℃ -200℃ ~ +120℃
    Temperature Accuracy ±0.3℃ (-20℃ ~ +40℃) ±0.3℃ (-20℃ ~ +40℃)
    0.5℃ (-40℃ ~ -20℃/+40℃ ~ +80℃) 0.5℃ (-40℃ ~ -20℃/+40℃ ~ +80℃)
    ±1.0℃ (-100℃ ~ -40℃/+80℃ ~ +120℃) ±1.0℃ (-120℃ ~ -40℃/+80℃ ~ +120℃)
    Communication Interface USB 2.0 and Bluetooth 4.2
    Sensor External Temperature Probe, 1.5m
    Temperature Resolution 0.1℃
    Data Storage Capacity 32000
    Start Mode Push-To-Start or Timing Start
    Logging Interval Programmable (10s ~ 18h) [Default: 10mins]
    Alarm Range Programmable [Default: <2℃ or >8℃]
    Alarm Delay Programmable (0 ~ 960mins) [Default: 10mins]
    Alam Delay Programmable (0 ~ 254mins) [Default: 30mins]
    Battery Typically 1 years, ER14250 Lithium Battery (Replaceable)
    Report Generation Automatic PDF/CSV Report Generation
    Software Temp Logger App (For Android and IOS)
    Management Software (For Windows, 21 CFR 11 Compliant)
    Waterproof Level IP65
    Demension 115mm * 50mm * 20mm
    Net Weight 100g

    Details

    Details of Bluetooth USB Temperature Data Logger with Probe

    LCD Screen Display

    LCD Display of USB Temperature Data Logger

    If there E001 or E002 on the screen, please check:

    • If the sensor is not connected or broken
    • If over the temperature detect range

    Applications

    Applications of USB Temperature Data Logger

    How to Use

    1. Start recording
      Insert the sensor completely into the temperature data logger. Press and hold the left button for more than 3s until the LED light turns green, and the "▶" or "WAIT" displays on the screen, which indicates the logger is started.
    2. Mark
      When the device is recording, press and hold the left button for more than 3s, and the screen will switch to the “MARK” interface. The number of “MARK” will increase by one, indicating data was marked successfully.
    3. Stop recording
      Press and hold the right button for more 3s until the LED light turns red, and the "■" displays on the screen, indicating stop recording successfully.
    4. Turn on/off Bluetooth
      Press and hold the two buttons for more than 3s at the same time, until the red light flashes quickly, and the Bluetooth logo displays on the screen or disappears, indicating the Bluetooth was turn on or off. If the temperature data logger is in flight mode, press and hold the two buttons for more than 3s will quit the flight mode.
    5. Get report
      After recording, there are two ways to get report: connect the device with USB port of PC or using Temp Logger App on smart phone, it will automatically generate PDF and CSV report.
