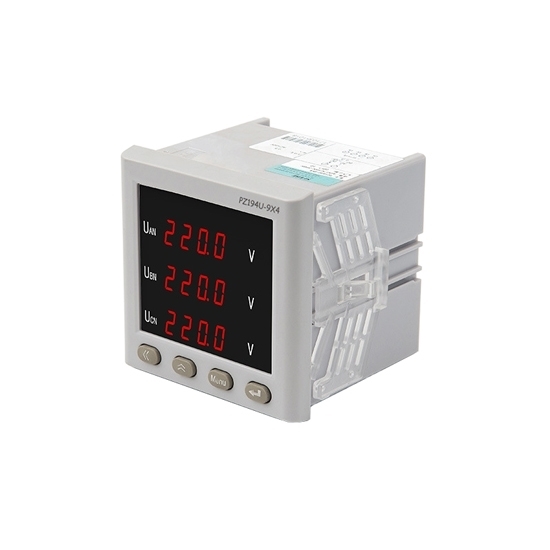

    3 Phase AC Digital Panel Volt Meter

    5 out of 5 based on 1 reviews | Write a review
    $426.25
    Favorable price digital panel volt meter can measure 3 phase voltage AC 380V in three phase electric network with high accuracy, LED display, baud rate up to 9600bps, selectable different panel size.
    *
    *
    *
    *
    SKU: ATO-PANEL-VM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High performance digital panel voltmeter is suitable for the measurement of the three phase voltage parameters of the power distribution system. This panel meter has programmable ratios, supports analog output and communication functions, and can directly replace analog pointer volt meters.

    Specification

    Model ATO-PZ194U-□X4/□k4
    Level of Accuracy 0.5 Level
    Display LED Display
    Display Data Refresh Frequency 1s
    Input Characteristics Voltage Rated Value (Optional) AC 380V
    Overload Duration: 1.2Un, Instantaneous: 20Un/1min
    Frequency 45 ~ 65Hz
    Auxiliary Power Working Scope AC 80 ~ 270V (50/60Hz), DC 80 ~ 270V, DC 24V/48V
    Power Consumption ≤5VA
    Switch Input Dry Contact Mode
    Relay Output Contact Capacity (Resistive): AC 5A/250V, DC 5A/30V
    Analog Output (Optional) N/A or 4-20mA, Load ≤350Ω
    Communication (Optional) N/A or 1 Channel Modbus-RTU Protocol
    Wiring (Optional) 3 Phase 4 Wire (Default) or 3 Phase 3 Wire
    Protection Grade Front Panel IP64, Rear Panel IP20
    Working Temperature -40℃ ~ 70℃ (LED)
    Relative Humidity -40℃ ~ 85℃ (LED)
    Absolute Ability Power Supply, Input, Output≥AC2KV
    Altitude ≤2500m

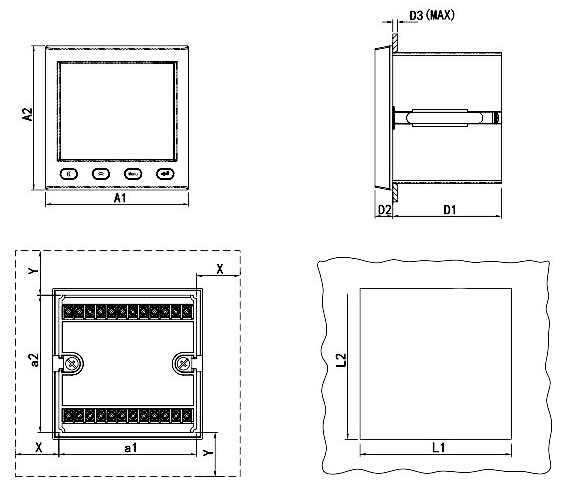

    Dimensions (Unit: mm)

    Dimensions of Digital Ampere Meter

    Type Panel Size
    (A1 x A2)
    Installation Size
    (a1 x a2)
    Cut-out Size
    (L1 x L2)
    Installation Depth
    (D1)
    Panel Thickness
    (D2)
    Installation Screen Thickness
    (D3 max)
    Reserved Size
    Horizontal
    (X)
    Vertical
    (Y)
    Type 2 120 x 120 110 x 110 111 x 111 55.5/76 15 5 10 20
    Type 3 83 x 83 75 x 75 76 x 76 75 12.5 5 10 20
    Type 5 96 x 48 90 x 43 91 x 44 68.5/82 10.5 10 40 20
    Type 9 96 x 96 90 x 90 91 x 91 75/98 13.5 10 40 20
    Type A 74 x 74 66 x 66 67 x 67 75/90 12.5 5 10 20
    Type D 48 x 48 44.5 x 44.5 45 x 45 89 9.5 5 40 20

    Tips for using the digital panel volt meter

    1. Before use, the digital panel volt meter needs to be powered on for 15 minutes.
    2. Pay attention to prevent vibration and impact, and do not use this meter in places with excessive dust and excessive harmful gases.
    3. The input wire should not be too long. If the input terminal of the signal under test is long, please try a twisted-pair shielded wire.
    4. If the signal is accompanied by high frequency interference, you should try the low frequency filter online.
    5. When it is stored for a long time and not in use, please turn on the power once every three months for not less than 4 hours.
    6. For long-term storage, avoid direct light, and should be stored at an ambient temperature of -25°C ~ 55°C.
    7. If there is no display on the digital panel voltmeter, first check the auxiliary power supply and whether the voltage is within the range.
    8. If the display is abnormal, check whether the input signal is normal and whether the signal terminal is tightened.
    9. Unless the PT has enough power, the PT signal cannot be used as an auxiliary power source at the same time to ensure the normal operation of the instrument.
    10. The current terminal screws in the CT circuit must be tightened to ensure reliable contact between incoming and outgoing wires to avoid malfunctions.
    11. If you want to calibrate the voltmeter, the calibration instrument should be better than 0.1 level to ensure calibration accuracy.
