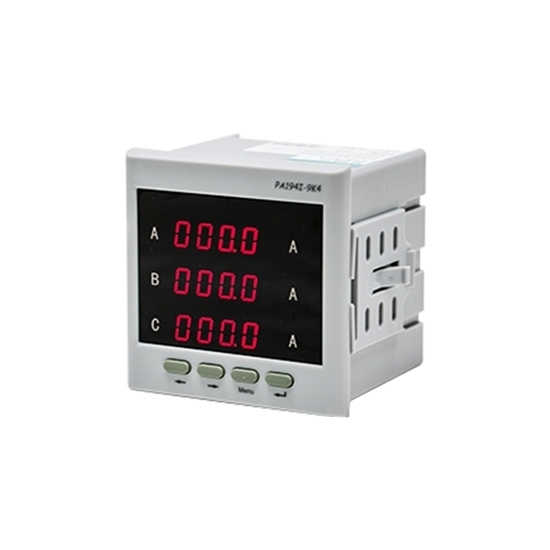

3 Phase AC Digital Ampere Meter

5 out of 5 based on 1 reviews | Write a review

$612.39

Digital display panel ampere meter with LED display can measure 3 phase AC current 1A or 5A in three phase electric network with high accuracy, monitor analog input and switch input, and different panel size for your choices.

Panel Size *
Input Current *
Wiring Type *
Communication *
Analog Output *

SKU: ATO-PANEL-AM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Economical price digital display AC ammeter is suitable for the measurement of the three phase current parameters of the power distribution system. This panel ammeter has programmable ratios, supports analog output and communication functions, and can directly replace analog pointer meters.

Specification

Model			ATO-PZ194U-□X4/□k4
Level of Accuracy			0.5 Level
Display			LED Display
Display Data Refresh Frequency			1s
Input Characteristics	Current	Rated Value (Optional)	AC 5A (Default) or 1A
		Overload	Duration: 1.2In, Instantaneous: 20In/1s
	Frequency		45 ~ 65Hz
Auxiliary Power	Working Scope		AC 80 ~ 270V (50/60Hz)
	Power Consumption		≤5VA
Switch Input			Dry Contact Mode
Relay Output			Contact Capacity (Resistive): AC 5A/250V, DC 5A/30V
Analog Output (Optional)			N/A or DC 4-20mA, Load ≤350Ω
Communication (Optional)			N/A or 1 Channel Modbus-RTU Protocol
Wiring (Optional)			3 Phase 4 Wire (Default) or 3 Phase 3 Wire
Protection Grade			Front Panel IP64, Rear Panel IP20
Working Temperature			-40℃ ~ 70℃ (LED)
Relative Humidity			-40℃ ~ 85℃ (LED)
Absolute Ability			Power Supply, Input, Output≥AC2KV
Altitude			≤2500m

Dimensions (Unit: mm)

Dimensions of Digital Ampere Meter

Type	Panel Size (A1 x A2)	Installation Size (a1 x a2)	Cut-out Size (L1 x L2)	Installation Depth (D1)	Panel Thickness (D2)	Installation Screen Thickness (D3 max)	Reserved Size
Type	Panel Size (A1 x A2)	Installation Size (a1 x a2)	Cut-out Size (L1 x L2)	Installation Depth (D1)	Panel Thickness (D2)	Installation Screen Thickness (D3 max)	Horizontal (X)	Vertical (Y)
Type 2	120 x 120	110 x 110	111 x 111	55.5/76	15	5	10	20
Type 3	83 x 83	75 x 75	76 x 76	75	12.5	5	10	20
Type 5	96 x 48	90 x 43	91 x 44	68.5/82	10.5	10	40	20
Type 9	96 x 96	90 x 90	91 x 91	75/98	13.5	10	40	20
Type A	74 x 74	66 x 66	67 x 67	75/90	12.5	5	10	20
Type D	48 x 48	44.5 x 44.5	45 x 45	89	9.5	5	40	20

Tips: What is a 3 phase digital ampere meter?

The three phase digital ampere meter is used to set the CT parameters through the panel buttons to visually display the system's one-time operating current. The three rows of digital tubes simultaneously display the 3 phase AC current value. The LED or LCD display is clear and high precision. This panel ammeter can replace the traditional analog pointer meter with RS485 interface and analog quantity, upper and lower limit alarm function, convenient for data exchange with microcomputer, PLC, etc., which is a high performance automation instrument and suitable for modern power supply and distribution systems such as industrial and mining enterprises, civil buildings, and building automation.
