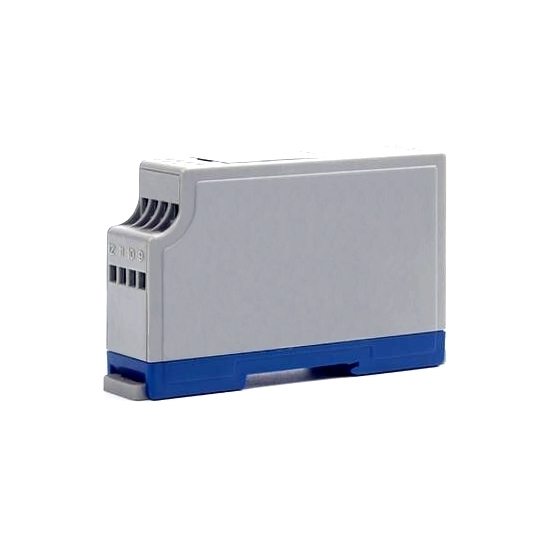

    DC Voltage Transducer for Measuring Bidirectional Voltage 10mV-1000V

    $183.17
    DC voltage transducer with supply voltage DC 9-36V is a special voltage sensor for bidirectional voltage tracking. The measuring range of input voltage is from ±10mV, ±50mV, ±100V, ±200V, ±500V to ±1000V. The tracking output signal can be DC ±5V, ±10V.
    *
    *
    SKU: ATO-VOS-BDC1000S
    Availability: Out of stock
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    This SKU ATO-VOS-BDC1000S is out of stock.
    We recommend you another bidirectional DC voltage sensor ATO-VOS-BDC1000, which has measuring range from ±50mV, ±50V, ±200V, ±500V to ±1000V and power supply DC 12V/15V/24V.


    DC voltage transducer has measuring range of DC ±10mV, ±50mV, ±100V, ±200V, ±500V to ±1000V.

    Specification:

    Model ATO-WBV351M05
    Shipping weight 1kg
    Measuring range of input voltage * DC ±10mV ~ ±1000V
    Short-time overload 2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
    Linear measurement range 0% ~ 120% measuring range
    Input impedance When Ux>1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
    Output signal * DC ±5V, ±10V
    Power supply DC 9-36V
    Accuracy 0.1%F.S.
    Load capacity 10mA
    Response time ≤20ms
    Temperature drift 50*10-6/℃
    Static power consumption 0.32W
    Isolation features Isolation between input, output and power supply
    Isolation voltage DC 2.5kV, 1 min
    Work temperature -25~+70℃
    Storage temperature -40~+85℃
    Protection features Surge (inrush) immunity: IEC61000-4-5
    Electrostatic discharge immunity: IEC61000-4-2
    Radio frequency electromagnetic field radiation immunity: IEC61000-4-3
    Electrical fast transient burst immunity: IEC61000-4-4
    Conducted immunity of radio frequency electromagnetic field: IEC61000-4-6
    Mean time between failures >50000h
    Housing material PC + Fire-retardant ABS
    Wiring Terminal connection
    Installation DIN rail (NS35/7.5, NS35/15, EN50022), or screw (M3) fixation

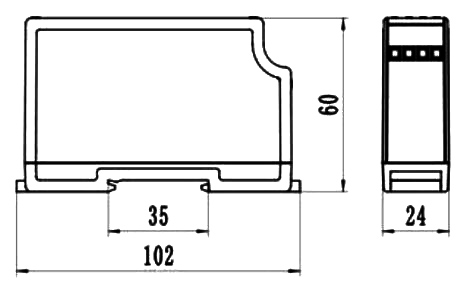

    DC voltage transducer for bidirectional voltage 10mV to 1000V dimensional drawing (unit: mm):
    DC voltage transducer for bidirectional voltage 10mV to 1000V dimension

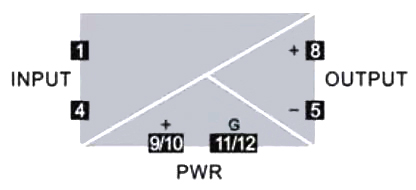

    DC voltage transducer 10mV to 1000V wiring diagram:
    DC voltage transducer for bidirectional voltage 10mV to 1000V wiring

    Details

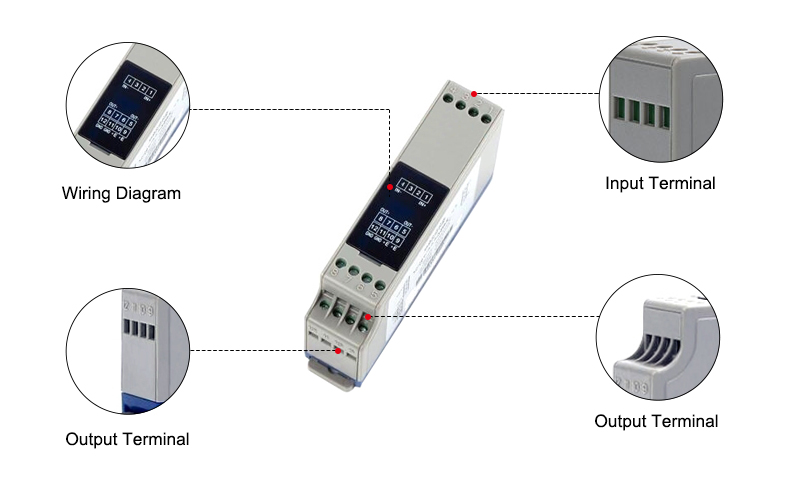

    Voltage Sensor, Range 10mV to 1000V Details
