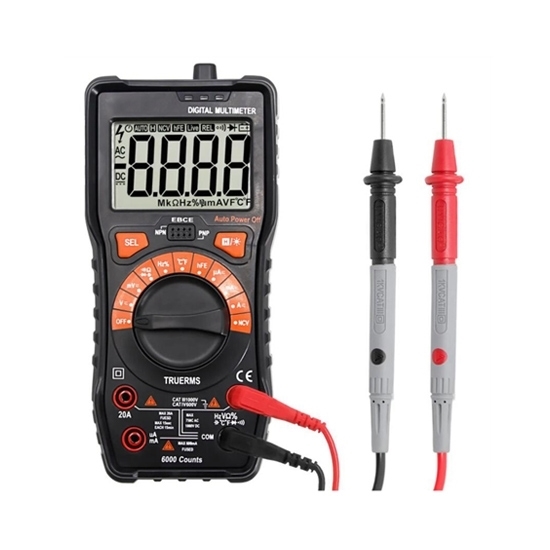

The provided 20A smart multimeter with auto range is desired for beginners. Handheld 1000V digital multimeter is perfect for measuring AC/DC current, AC/DC voltage, frequency, duty cycle, resistance, and capacitance. True RMS, high accuracy, portable design, easy operation.
Specifications
Model |
ATO-MLT-UA19B |
Maximum Display Value |
5999 |
Operation Mode |
Auto Range |
Sample Frequency |
60Hz |
Input Impedance |
10MΩ |
Monitor |
6000 Counts LCD Monitor |
Battery Type |
6F22 9V Battery (Not Included) |
Weight |
About 580g |
DC voltage |
600mV/6V/60V/600V/1000V |
AC Voltage |
600mV/6V/60V/600V/750V |
DC Current |
60uA/600uA/6000uA/60mA/600mA/20A |
AC Current |
60uA/600uA/6000uA/60mA/600mA/20A |
Resistance |
600Ω~60MΩ |
Capacitance |
9.999nF~99.99mF |
Temperature |
-20C~1000C |
Frequency |
9.999Hz~9.999MHz |
Duty cycle |
0.1%~99.9% |
Functions
NCV |
√ |
0verload Protection |
√ |
True RMS |
√ |
Auto Power Off |
√ |
Diode Test |
√ |
Flashlight |
√ |
On-off Buzzer |
√ |
Backlight Function |
√ |
Low Battery Display |
√ |
Data Hold |
√ |
HEF/Transistor |
√ |
LED Torch |
√ |

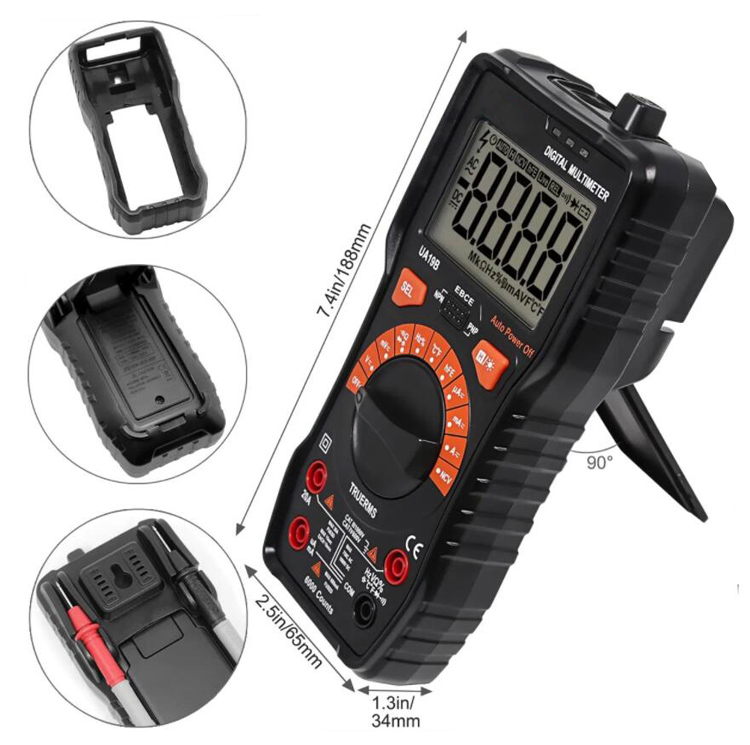

Dimension (Unit: mm)

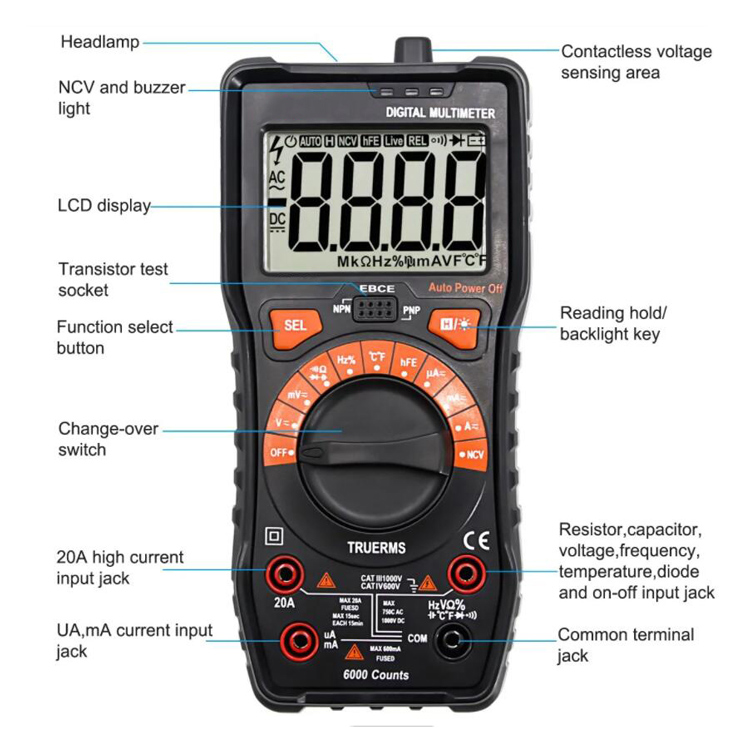

Details
Applications
Tips: Why do you need a multimeter?
A multimeter is a versatile tool that can measure a variety of electrical parameters, such as voltage (volts), current (amps), resistance (ohms), and continuity. These measurements are important for troubleshooting, installing, and repair of electrical systems and components.
For example, a multimeter can be used to:
- Check the voltage of a battery to determine if it needs to be replaced.
- Measure the resistance of a component to determine if it is functioning properly.
- Determine if there is a short circuit or broken wire in a circuit.
- Measure the current draw of an electrical device to determine if it is functioning correctly.
In short, a multimeter is an essential tool for anyone working with electrical systems, as it provides important information about the state of those systems and helps identify issues that may need to be addressed.
