Smart Multimeter for Volt/Ohm/Amp

5 out of 5 based on 1 reviews | Write a review

$106.15

1000V 20A smart multimeter can be used for measuring voltage/current/resistance/capacitance/resistance/temperature. It is a digital true RMS multimeter with a 5999 max display, manual range, diode testing, triode testing, NCV test, and multi-functions, widely used in electronics, electrical engineering, electrical repair, etc.

SKU: ATO-MLT-78

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

1000V smart digital multimeter for sale online. It is a versatile tool designed for voltage/resistance/capacitance/resistance measurement. 5999 max display, manual range, diode testing, triode testing, NCV test, and multi-functions are available. High accuracy 20 amp true RMS multimeter is suitable in electronics, electrical engineering, electrical repair and so on.

Specifications

Model	ATO-MLT-UA78A+
Maximum Display Value	5999
Operation Mode	Manual Range
Input Impedance	10MΩ
Battery Type	9V Battery (6F22)
Dimension	200x94x57mm
Weight	About 690g
DC voltage	600mV/6V/60V/600V/1000V
AC Voltage	6V/60V/600V/750V
DC Current	60μA/60mA/600mA/20A
AC Current	60mA/600mA/20A
Resistance	600Ω/6KΩ/60kΩ/600kΩ/60MΩ/600MΩ
Capacitance	0~100mF
Temperature	0°C~1000°C
Frequency	0~10MHz

Functions

NCV Test	√	Auto Power Off	√
Diode Testing/Triode Testing	√	Function Protection	√
On-off Buzzer	600Ω	Shake-Proof Protection	√
Data Hold/TRMS/NCV	√	Backlight	√
Low Battery Display	√	Self Recovered Safety	√

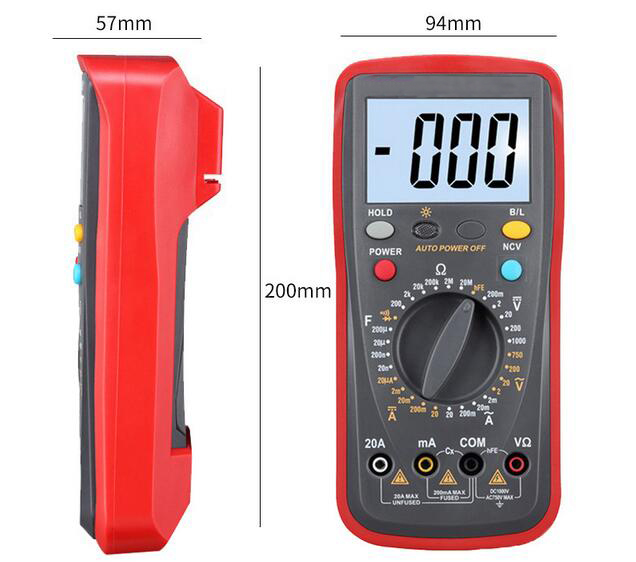

Dimension (Unit: mm)

Smart multimeter dimension

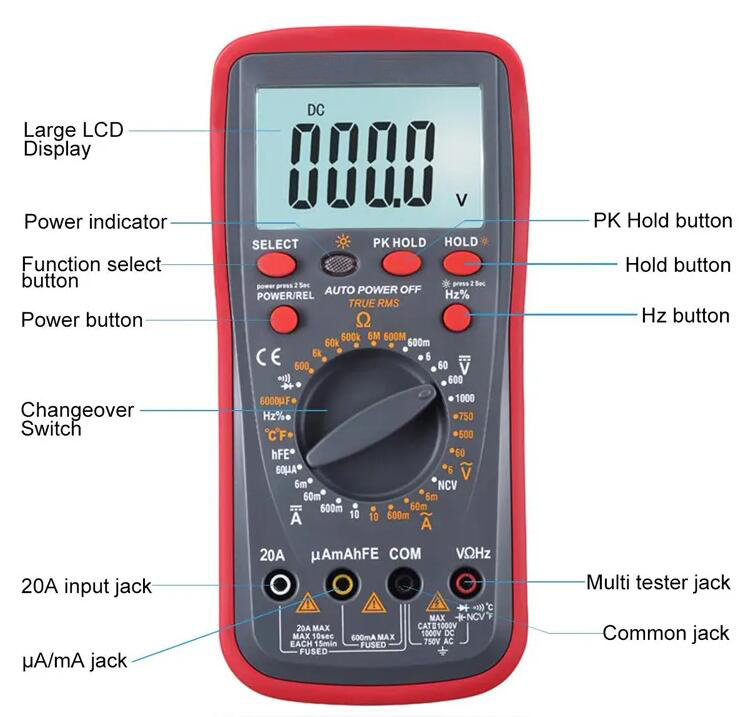

Details

Applications

Smart multimeter applications Tips: What is a smart multimeter?

A smart multimeter, also known as a digital multimeter or DMM, is an electronic measuring device that combines multiple functions, such as measuring voltage, current, and resistance, into one compact unit. It is called "smart" because it often has additional features and functions that go beyond what traditional analog multimeters can offer, such as the ability to measure continuity, frequency, and temperature, display readings on a digital screen, and even connect to a computer or smartphone for data logging and analysis. Some smart multimeters may also have advanced safety features, such as automatic shutdown or alerts in the case of over-voltage or over-current.
