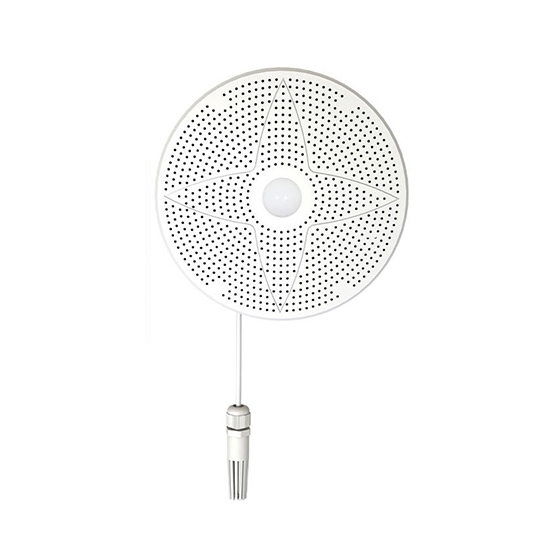

Air Quality Monitor Sensor, CH2O/CH4/CO2, RS485/WIFI Output

Write a review

$276.34

High-quality air quality monitor sensor supports formaldehyde (CH2O), carbon dioxide (CO2) and methane (CH4) detection, low cost, wide detection range, support DC 10-30V power supply, power consumption as low as 1.5W, with RS485 or WIFI signal output, easy to remote monitoring and data transmission.

Signal Output *

SKU: ATO-AQS-SMG111

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

An air quality monitor sensor for sale with multi-parameter monitoring, equipped with CO₂/CH₂O/CH₄ detection function, suitable for residential, commercial and industrial environments. Measurement accuracy is stable, with CO₂ detection accuracy of ±(50ppm+3%FS), and formaldehyde and methane accuracy of ±5%FS, which meets stringent environmental monitoring requirements. In addition, the air quality sensors are available in wall and ceiling mounting options, and are designed for temperatures from -10°C to 55°C and humidity from 0-95% RH.

Specification

Model	ATO-RS-MG111-NO1-1	ATO-RS-MG111-WIFI-1
Maximum Power Consumption	1.5W (24V DC power supply)	1.6W (24V DC power supply)
Signal Output	RS485 output	WIFI output
DC Power Supply	DC 10-30V (Default)
Detection Parameters	Carbon dioxide (CO₂)	Formaldehyde (CH₂O)	Methane (CH₄)
Range	0-5000ppm	0-5ppm	0-100%LEL
Resolution	1ppm	0.01ppm	1%LEL
Precision	± (50ppm+3%FS)	±5%FS (@1ppm , 25℃, 50%RH)	±5%FS
Warm-up Time	2min (usable), 10min (maximum accuracy)	≥5 minutes	≥5 minutes
Working Temperature	-10°C-55°C
Working Humidity	0-95% RH, non-condensing
TSP Required Temperature	-10℃-55℃
TSP Required Humidity	0-70%RH
Material	ABS
Installation	Wall/Ceiling
Note	If you require air quality monitor sensors in other measurement ranges not listed in the table above, please contact us with your operating environment to help you select the right sensor for your application.

Dimension (unit: mm)

Details

Wide Voltage Power Supply: Adopt special 485 circuit, stable communication, 10-30V wide voltage power supply.
Accurate and Stable: Highly sensitive gas detection probe, stable signal and high accuracy.
Ultra-strong Body: Air quality monitor sensor is made of ABS material, sturdy and durable.

Wiring Method

Note: When wiring 485 signals, note that the A and B wires should not be reversed.

Applications

Tips: How accurate are air quality monitor sensors?

Different models of air quality monitor sensors vary in accuracy, usually domestic air quality sensors are suitable for daily monitoring of environmental quality, while industrial air quality sensors are more accurate and suitable for specialised situations such as laboratories or environmental testing stations. When in use, you should calibrate the device regularly and follow the maintenance advice provided by the manufacturer to ensure the accuracy of the test results. And, air quality monitoring sensors require regular maintenance to ensure accuracy. Maintenance typically includes cleaning the sensor surface, replacing or cleaning the filter, and calibrating the device for a specific period of time.
