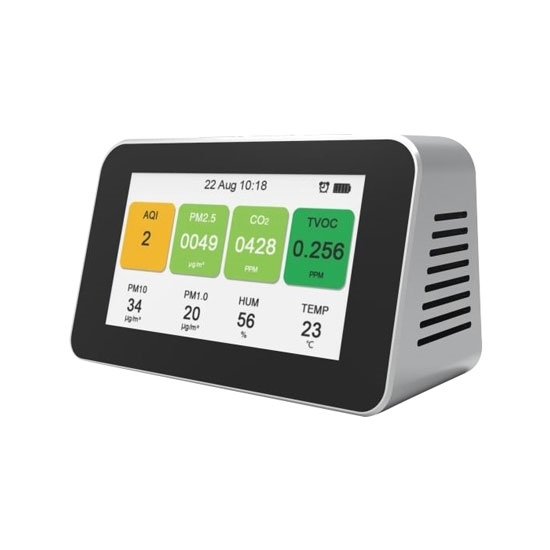

Light and compact air quality monitor for home can detect PM2.5, PM1.0, PM10, CO2, TVOC, AQI, temperature and humidity quickly and accurately, an ideal meter to detect the air quality around you or your family.
Features
- Multifunctional air quality monitor for dust (PM2.5/PM1.0/PM10), HCHO, CO2, TVOC detection.
- Support temperature and humidity test
- Display the air quality index (AQI) data
- Air meter also has time, calendar and alarm clock functions.
- 4.3 inch TFT LCD display, easy to read.
- Multiple interface options, user-friendly design.
- Using high-precision independent sensors and high-speed ARM processor, fast operation and more accurate detection.
- Built-in large capacity rechargeable lithium battery for long-time working.
Specification
Model |
ATO-AIR-DM601 (No HCHO) / ATO-AIR-DM601B (With HCHO) |
Test Item |
PM2.5, CO2, HCHO, TVOC, PM1.0, PM10, AQI, Temperature, Humidity |
Measure Range |
PM2.5: 0-999μg/m³ CO2: 0-5000ppm TVOC: 0.001-9.999mg/m³ AQI: 0-500 |
Temp. & Hum. Detection Range |
Temperature: 0℃ ~ 50℃ Humidity: 20% ~ 90% RH |
Detection Principle |
PM2.5/PM1.0/PM10: Laser scattering CO2: CO2 sensor TVOC: Semiconductor sensor Temp. & Hum.: Temperature and Humidity sensor |
Other Function |
Time, calendar, alarm clock |
Detection Area |
100m2 |
Operating Temperature |
-10℃ ~ 50℃ |
Operating Humidity |
20% ~ 90%RH |
Storage Temperature |
-20℃ ~ 50℃ |
Display |
4.3" TFT LCD screen |
Power Supply |
Rechargeable Li-battery |
Material |
ABS |
Product Size |
131*78*65 mm |
Product Weight |
650g |
Standard Accessories |
Main device, USB charging cable, user manual |
Certification |
CE |

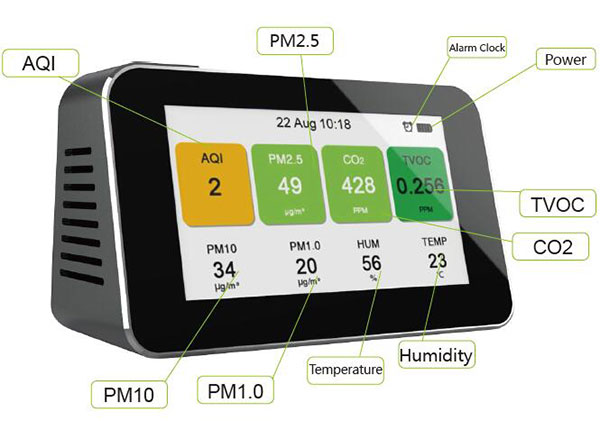

Product Introduction
Applications
Tips: Types and hazards of indoor air pollutants
Indoor air pollutants mainly come from decoration, decoration materials widely used in decoration, plate, paint, wall paint, glue, new furniture, adhesives and other easy to produce harmful to human health pollutants.
Formaldehyde (HCHO)
Formaldehyde is the main pollution from the decoration of new house. It is a kind of gas with irritating odor with release period as long as 3-15 years.
TVOC
What is TVOC? It stands for Total Volatile Organic Compounds. It contains hydrocarbon, halogenated hydrocarbon, oxygenated hydrocarbon and nitrogen hydrocarbon, and includes benzene series, organic chlorides, Freon series, organic ketone, amines, alcohols, ethesr, esters, acids and petroleum hydrazine compounds. The TVOC indoor mainly comes from the combustion of gas and natural gas, and the emission of construction and decoration materials, especially paints, coatings and adhesives=
PM2.5
In PM2.5, PM refers to particulate matter, namely the solid or liquid granular material in the atmosphere; 2.5 refers to particulate matter with an aerodynamic equivalent diameter of 2.5 microns or less in ambient air. Such matters can be suspended in the air for a long time, so the higher the concentration of PM2.5 in the air, the more serious the air pollution.
Indoor air detector is a great choice to quickly detect formaldehyde, benzene, ammonia, TVOC and other harmful pollutants in indoor air, so as to safeguard our health.
