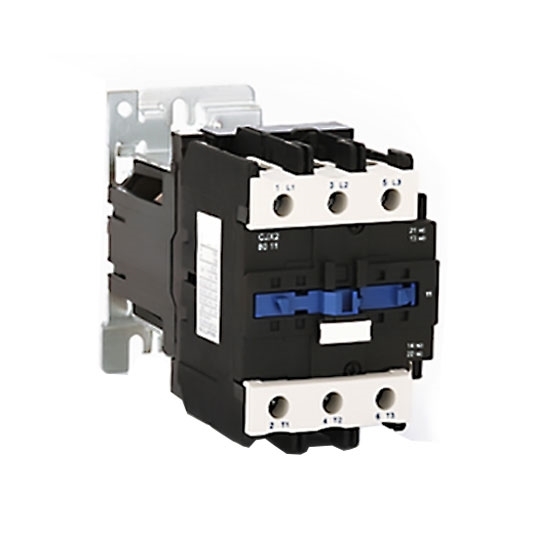

    95 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil

    5 out of 5 based on 1 reviews | Write a review
    $117.19
    High performance AC contactor with DC control is an electrical controlled device used to switch current on and off, with 3 pole or 4 pole contact form, 95 amp rated current, making and breaking the connection between the power source and the load. 12V, 24V, 48V, 220V coil voltage are available.
    *
    *
    *
    SKU: ATO-DCCON-95A
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Best price DC contactor is an electrical controlled switch to connect and break of the circuit load, which is widely used in the control system of DC electric control, storage battery circuit and capacitance circuit.

    Specification

    Model ATO-CJX2-95Z ATO-CJX2-95008Z
    Rated Current 95A AC
    Coil Rated Voltage (Optional) 12V DC, 24V DC, 36V DC, 48V DC, 110V DC, 220V DC
    Contact Form (Optional) 3 Pole (3NO)+1NO+1NC 4 Pole (2NO+2NC)
    Frequency 50Hz/ 60Hz AC
    Rated Power (AC-3) 200-240V 25kW (35HP)
    380-440V 45kW (60HP)
    500-550V 45kW (60HP)
    600-690V 45kW (60HP)
    Conventional Thermal Current 130A
    Operating Temperature -40℃~85℃
    Operating Humidity 5~95% RH
    Dimensions 87 x 129 x 182mm 96 x 129 x 196mm
    Weight 1.75kg

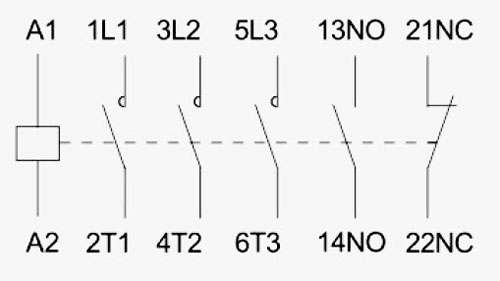

    Circuits Diagram

    95 amp DC Contactor Circuit Diagram

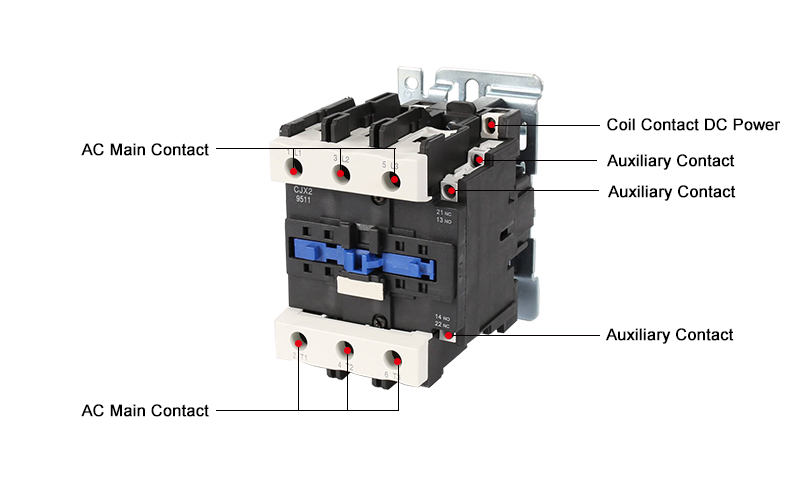

    Details

    95 Amp DC Contactor Details

    Tips for using a DC contactor

    • Regular inspection
      Regularly check the parts of the DC contactor. The movable parts of the first-class DC contactor are flexible and the fasteners are not loose. Damaged parts should be repaired or replaced in time.
    • Keep it clean
      Keep the contact surface of the DC contactor clean and do not allow any greasy dirt. When small metal beads are attached to the contact surface due to arc ablation, it should be removed in time. If the contact has worn out, it should be adjusted in time to eliminate the excessive size. If the thickness of the contact is only 1/3, it should be replaced in time.
    • Do not remove the arc cover
      The DC contactor is not allowed to be used with the arc extinguishing cover removed, because in this way, the DC contactor may cause a short circuit accident due to the arc interconnection when the contacts are disconnected. The arc extinguishing cover made of clay is fragile and will be broken during disassembly and assembly. Care should be taken to avoid damage caused by collision.
    • Timely replacement
      If the DC contactor cannot be repaired, it should be replaced. Before replacement, check the parameters marked on the nameplate of the DC contactor and the coil label. The relevant data of the replaced DC contactor should meet the technical requirements. Some DC contactors also need to check and adjust the contact distance, overtravel, pressure, etc., to synchronize the actions of each contact.
    • Properly select the rated current
      When the working conditions of the DC contactor are bad, such as the frequent forward and reverse rotation of the motor, the rated current of the contactor should be selected by a higher level.
    Existing reviews of 95 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
    Replace my old and noisy DC contactor.
    I bought this 95 amp 3 Pole DC contactor to replace my old and noise one. This contactor appears to be a high quality unit. The terminals are well-labeled. And, it's quiet. It works great. I am very happy with this purchase and I will buy more if I need.
    From: Vernon | Date: 28/06/2022
