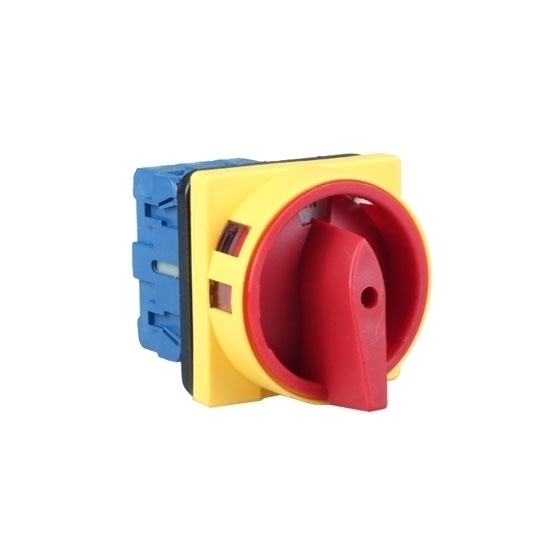

    2 Position 80A Rotary switch 3 Pole/4 Pole

    5 out of 5 based on 1 reviews | Write a review
    $78.12
    This rotary switch is used for AC 50Hz, rated working voltage below 440V, rated current to 100A in electrical circuit, 2 position, 3 pole or 4 poel is optional, rated current 80 amp, insulation class IP65, small size, compact structure, direct sales by manufacturers.
    *
    *
    SKU: ATO-WS3080
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Rotary cam switch 3 pole/4 pole is available, 80A, frequency 50Hz, changeover switch can be used for commutation measurement of various control lines, voltmeters and ammeters.

    Specification:

    Model ATO-WS3080
    Rated Thermal Current 80A
    Rated Working Voltage 240V 440V
    Rated Working Current AC-21A 80A 80A
    AC-22A 80A 80A
    AC-23A 57A, 18.5 kW 57A, 30 kW
    AC-3 43A, 15 kW 43A, 22 kW
    Pole 3 Pole/4 Pole
    Position 2 Position
    Type of Current AC 50Hz
    Positions of Main Contact On or Off
    Rated Duty 8 Hours every day, operational efficiency 30 times/hour

    Dimensions

    1. Default version

    Rotary switch 3 pole dimensions.

    Overall Dimension (mm) Mounting Dimension (mm)
    A B C K L E F D1 D2
    64 70 80 22.5 82 48 48 φ10 φ4.2

    2. IP65 version

    IP65 rotary switch dimension

    Overall Dimension (mm) Mounting Dimension (mm)
    D3 D4 M N P A1 A2 B D2
    φ37.5 φ23 144 145 250 -- 229 124 φ6.5

    Rotary Switch Diagram

    Rotary switch 3 pole 4 poleWorking Conditions

    1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24h ≤ +35 ° C.
    2. The lower limit of ambient air temperature ≤ -25 °C.
    3. The altitude of the installation location is ≤2000m.
    4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.

    Tips: In the configuration of the rotary switch, a rotating shaft is formed by the bottom through the top cover to form a rotating handle, and the bottom plate and the top cover are clamped and fixed up and down to form a switch assembly. When in use, it can rotate 90 degrees 180 degrees or 360 degrees, each rotation to a position. The movable contacts are connected to different static contacts, and different states can be outputted on the external terminals, thereby achieving control.
