2 Position 32A Rotary Switch 3 Pole/4 Pole

5 out of 5 based on 1 reviews | Write a review

$67.69

Buy low cost 3 pole 2 position rotary switch, rated current 32 amps, protection level IP65, it is not only used for the introduction of the power supply in the machine control circuit, but also as a control switch for directly controlling the small-capacity asynchronous motor.

Pole *
Type Selection *

SKU: ATO-WS3032

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

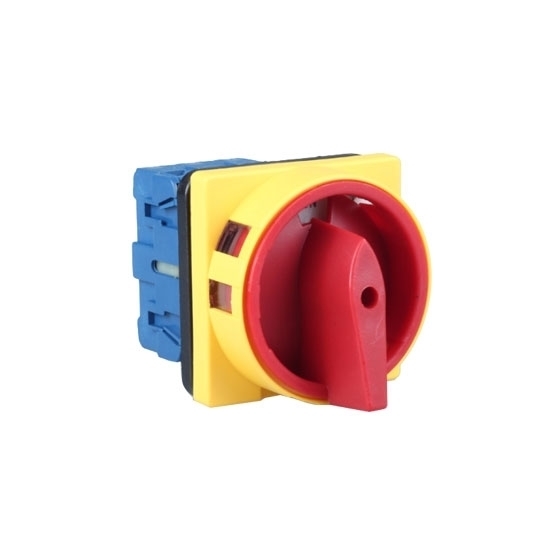

Rotary switch 2 position, 3 pole/4 pole can be selected, 32A, frequency 50Hz, widely used in the introduction of power supply switches in machine tool electrical control lines.

Specification:

Model		ATO-WS3032
Rated Thermal Current		32A
Rated Working Voltage		240V	440V
Rated Working Current	AC-21A	32A	32A
	AC-22A	32A	32A
	AC-23A	22A, 5.5 kW	22A, 11 kW
	AC-3	15A, 4 kW	15A, 7.5 kW
Pole		3 Pole/4 Pole
Position		2 Position
Type of Current		AC 50Hz
Positions of Main Contact		On or Off
Rated Duty		8 Hours every day, operational efficiency 30 times/hour

Dimensions

1. Default version

Overall Dimension (mm)					Mounting Dimension (mm)
A	B	C	K	L	E	F	D1	D2
64	42	54	13.5	61	48	48	φ10	φ4.2

2. IP65 version

Overall Dimension (mm)					Mounting Dimension (mm)
D3	D4	M	N	P	A1	A2	B	D2
φ23	φ19	85	83	160	150	--	--	φ4.2

Rotary Switch Wiring Diagram

Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24 h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.
