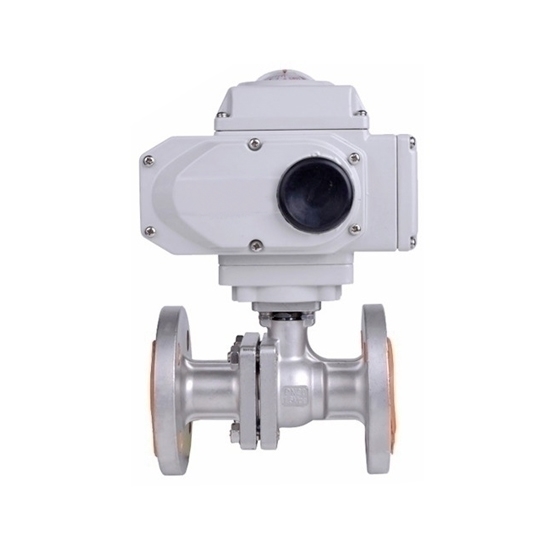

8" Electric Actuated Flanged Ball Valve, 2 Way/ 3 Way

Write a review

$4,124.99

Favorable price 8 inch stainless steel ball valve with aluminum alloy electric actuator for delivering water, air, gas, oil, liquid and other media, selectable 2 way or 3 way,. DN200 (200mm) port size, PTFE seat material, 50/ 60Hz 110V AC, 220V AC, 380V AC, and 24V DC power supply. High performance and reliable.

Port *
Flow Type *
Power Supply *
Power Supply *

SKU: ATO-EBV-200B

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents
Proposition 65 Warning

Note: This ball valve cannot be used for drinking water.

8 inch industrial electric actuated ball valve is high performance and reliable, which can service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

Ball Valve	Model	ATO-EBV-200B
	Port Size	8 inch (DN200, 200mm)
	Ball Valve Type (Optional)	2 Way Flanged Type, 3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304), PVC
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	ATO-KLST-200	ATO-KLST-400
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	2000N.m, 100s	4000N.m, 100s
	Actuator Material	Aluminum Alloy
Protection Level		IP68

Note:

2 way flanged ball valve match with ATO-KLST-200 electric actuator, and 3 way flanged ball valve matches with ATO-KLST-400 electric actuator.
The ball valve dimensions and compatible actuator models are for reference only. Please contact us for exact specifications and actuator selection.

2 Way/ 3 Way Flanged Ball Valve Body Dimension (Unit: mm)

2 way / 3 way stainless steel flanged type electric ball valve dimension

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
200	400	26	3	335	265	295	210	560	280	440	550	12-φ22

Three Way Ball Valve Flow Pattern

T Type:

3 way pneumatic ball valve flow patterns t port

L Type:

3 way pneumatic ball valve flow patterns l port

Tips: Why choose ATO electric actuated ball valve?

Electric actuated ball valve has small fluid resistance. It can be powered by AC220V, AC380V or DC24V power supply voltage, receive (4-20mA, 0-10mA or 1-5VDC) current signal or voltage signal to control the operation, and rotate the sphere 0 ~ 90 degrees with the torque output by the angular stroke. The opening and closing action or the adjustment action can be completed.
It has the functions of in-machine servo operation, open signal position feedback, position indication, manual operation, etc. Powerful, reliable, and easy to connect with.
The ball core channel is flat and smooth, and it is not easy to deposit the medium, and the pipe can be passed through the ball. Simple structure, light weight and good sealing performance. Especially suitable for occasions requiring zero leakage rate.

Electric Actuator Instruction.pdf

*WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
