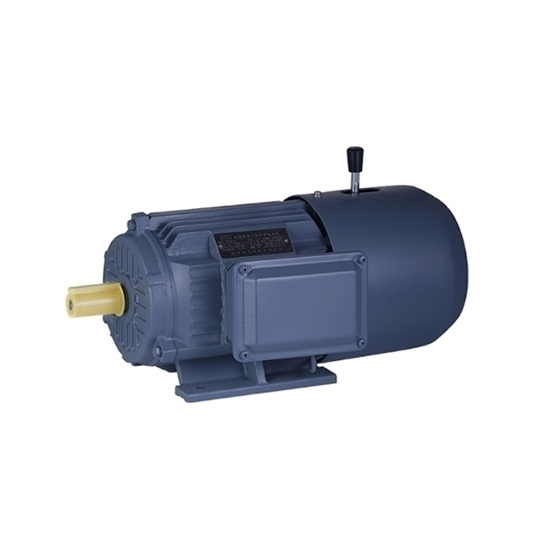

7.5 hp (5.5kW) Brake Motor, 3 Phase, 2/4 Pole

5 out of 5 based on 1 reviews | Write a review

$1,696.31

Cost-effective brake motor with rated power 5.5kW, rated voltage 380V (380V~480V can be customized), electric brake motor has 2 pole/ 4 pole for selection, 2 Tst/ Tn/ 2.2 Tst/ Tn locked-rotor torque/ rated torque. 3 phase brake motor is widely used in shipbuilding, industrial, fire fighting, chemical industry, energy, mining gold, environmental protection and national defense construction.

Number of Poles *

SKU: ATO-BM-132S

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview

Magnetic brake motor brake motor with energizing power 90 watt, static braking torque 75Nm and 2.3 Tmax/ Tn maximum torque/ rated torque.

Specification

Model	ATO-BM-131S1	ATO-BM-132S
Rated power	7.5hp (5.5kW)
Rated voltage	380V (380V~480V can be customized)
Numbers of poles	2 pole	4 pole
Rated torque	18.0 N.m	36.5 N.m
Speed	2900r/ min	1435r/ min
Current	11.1A	11.6A
Efficiency	85%	85%
Power factor	0.88 cosφ	0.84cosφ
Locked-rotor torque/ rated torque	2 Tst/ Tn	2.2 Tst/ Tn
Weight	78kg	95kg
Static braking torque	75Nm
No-load brake lag time	0.25s
Energizing power	90W
Locked-rotor current/ rated current	7 Ist/ In
Maximum torque/ rated torque	2.3 Tmax/ Tn
Certificate	CE
Warranty	12 months

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
132S	216	140	89	38	80	10	33	132	12	280	275	210	315	585

Details

5500W Brake Motor Details

Tips: About power failure brake.

Electromagnetic brake is an additional device commonly used in electromagnetic brake motors, and it has two types: power-on braking and power-off braking. The energized braking method is fast and accurate in positioning. It is used for automatic and intelligent control equipment that requires precise positioning. It has certain limitations in the application. Packaging and printing, textiles, automated production lines, and other mechanical transmission systems with positioning and braking requirements are commonly used. In addition to the advantages of flexible control and fast braking speed, power-off braking means that the equipment can be safely braked under unexpected power outages and out of control. Ensure the safety of persons and facilities.
