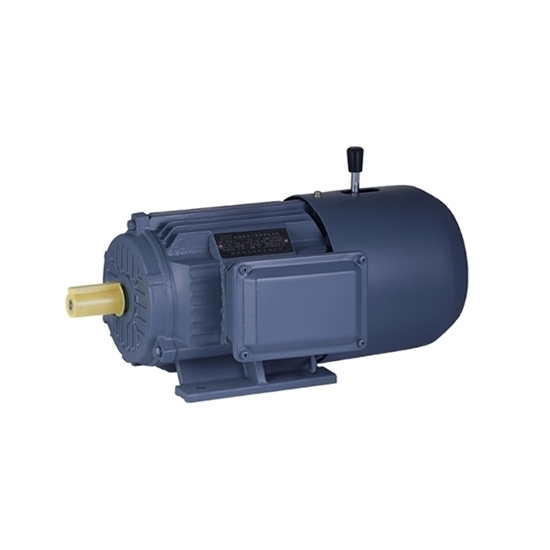

3 hp (2.2kW) Brake Motor, 3 Phase, 2/4 Pole

5 out of 5 based on 1 reviews | Write a review

$752.92

Competitive price brake motor has 2 pole/ 4 pole can be chosen, 3 hp brake motor with rated current 4.8A/ 5.03A, speed 2840r/ min/ 1390r/ min, 15Nm/ 30Nm static braking torque. Electromagnetic brake motor has the characteristics of small size, light weight, stable and reliable operation, large braking torque, fast braking speed, accurate positioning and convenient maintenance.

Number of Poles *

SKU: ATO-BM-100

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview
Related Video

Electric brake motor with cheap price, magnetic brake motor features 50W/ 60W energizing power, 0.2s no-load brake lag time and CE certification.

Specification

Model	ATO-BM-90L	ATO-BM-100L1
Rated power	3hp (2.2kW)
Rated voltage	380V (380V~480V can be customized)
Numbers of poles	2 pole	4 pole
Rated torque	7.4N.m	14.9N.m
Speed	2840r/ min	1390r/ min
Current	4.8A	5.03A
Energizing power	50W	65W
Power factor	0.86 cosφ	0.82cosφ
Static braking torque	15Nm	30Nm
Weight	42kg	59kg
No-load brake lag time	0.2s
Efficiency	81%
Locked-rotor current/ rated current	7 Ist/ In
Locked-rotor torque/ rated torque	2.2 Tst/ Tn
Maximum torque/ rated torque	2.3 Tmax/ Tn
Certificate	CE
Warranty	12 months

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
90L	140	125	56	24	50	8	20	90	10	180	195	160	195	445
100L	160	140	63	28	60	8	24	100	12	205	215	180	245	480

Details

Tips: The Brake Maintenance of Brake Motor.

● After the brake has been used for a period of time, due to the wear of the friction parts, it is necessary to readjust the clearance value by adjusting the screw, nut, adjustment sleeve, etc. to make it meet the specified value.

● The friction surface should always be kept clean and free of impurities.
The electromagnetic brake motor is mainly composed of two parts: a motor and an additional DC electromagnetic brake. The motor brake is equipped with a manual release device, which is used to complete the installation and debugging of the hanging basket and release the power outage. The motor adopts high-quality aluminum alloy shell, which has the characteristics of small size, light weight, stable and reliable operation, large braking torque, fast braking speed, accurate positioning, and convenient maintenance.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.

Existing reviews of 3 hp (2.2kW) Brake Motor, 3 Phase, 2/4 Pole

Can it run 400V?

I really need a brake motor but before I order it, I have some questions. Can this brake motor run 400V? And what the size is it? I want to sure that I won't buy a wrong size. I will appreciate you answer.

From: Adam | Date: 25/04/2022

Was this review helpful? Yes No (0/0)

ATO Responded

Our motor can work with 380V (380V~480V can be customized). For 90L motor, it is 180*195; for 100L, it is 205*245. If you want more information about the size, there is a table at the bottom of the product page.
