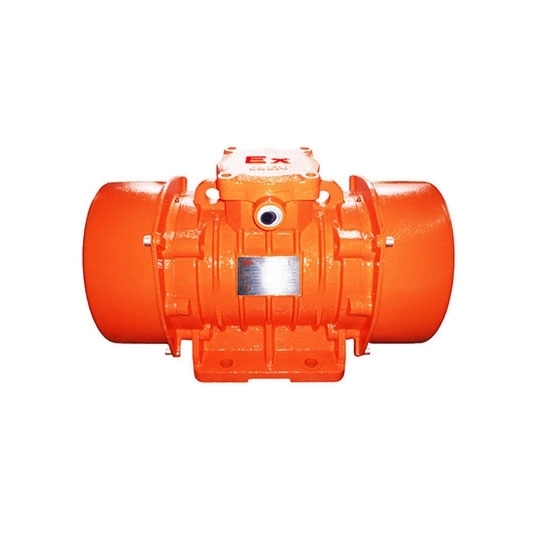

Three phase vibration motor, power 500W, 2 pole, with explosion proof function, 380V, 50/60 Hz, as a vibration source, vibration motors are widely used in coal, petroleum and natural gas, petrochemical, chemical and other industries.
Specification
Model |
ATO-EPNM-VBB-52 |
Power |
500W |
Rated Current |
1.39A |
Voltage |
380V |
Phase |
3 Phase |
Pole |
2 Pole |
Speed |
2875 rpm |
Frequency |
50/60 Hz |
Force |
5 kN |
Insulation Class |
F |
Protection Level |
IP55 |
Weight |
38kg |
Certificate |
CE |
2 Pole Explosion Proof Vibration Motor Dimension (unit: mm)
A |
B |
AB |
BB |
D |
L |
J |
G |
H |
HD |
d |
Bolt |
170 |
100 |
200 |
195 |
180 |
370 |
50 |
14 |
100 |
249 |
14 |
M12 |
500W Explosion Proof Vibration Motor Applications
Details
Tips: How to distinguish between vibration motor and ordinary motor?
First of all, the stability performance of the vibration motor is better than that of the ordinary vibration motor. It is a universal excitation source for various vibration machines such as vibrating screening machine, vibrating feeder, vibrating shakeout machine, vibrating ore drawing machine, etc. It is widely used for its excellent performance. Coal, metallurgy, mining, electric power, grain, chemical, foundry, cement, ports and other industries. The vibration motor is an excitation source that combines a power source and a vibration source. The vibration motor is equipped with a set of adjustable eccentric blocks at both ends of the rotor shaft, and the excitation force is obtained by the centrifugal force generated by the high-speed rotation of the shaft and the eccentric block.
Secondly, the vibrating motor relies on its own high-frequency vibration to generate vibrating force. Therefore, during its working time, the motor itself will have a high temperature rise, and it is precisely because of the existence of this matching gap that after the temperature rises The shaft of the vibrating motor will expand, and the expanded shaft will fit tightly with the bearing to achieve the normal working state. If there is no gap of 0.01-0.0115mm, the vibrating motor will produce when the working temperature rises to a certain temperature. A series of problems can even stop the operation or burn the vibration motor. So pay attention to this problem in the maintenance of the vibration motor.
