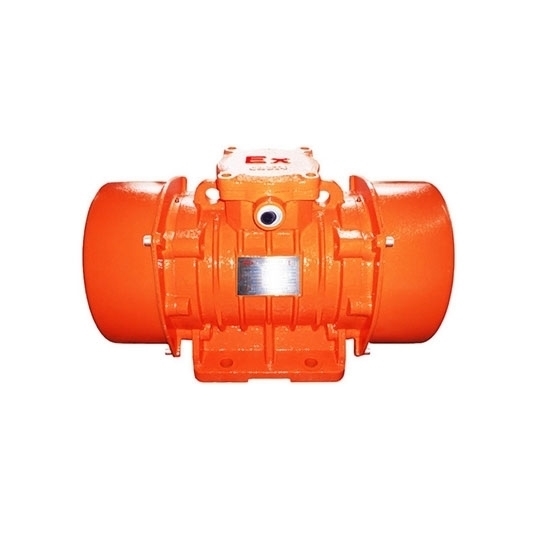

380 Volt powerful explosion proof vibration motor, 3 phase, is the preferred source of vibration for various types of machinery such as vibrating screens, vibrating blanking machines, circular vibrating screens, and vibrating conveyors.
Specification
Model |
ATO-EPNM-VBB-402 |
Power |
3 kW |
Rated Current |
6.2A |
Voltage |
380V |
Phase |
3 Phase |
Pole |
2 Pole |
Speed |
2870 rpm |
Frequency |
50/60 Hz |
Force |
40 kN |
Insulation Class |
F |
Protection Level |
IP55 |
Weight |
230kg |
Certificate |
CE |

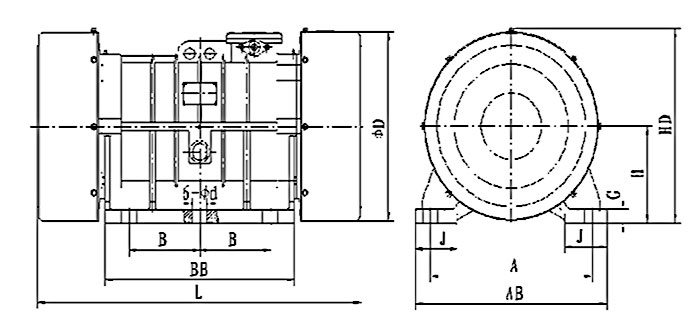

2 Pole Explosion Proof Vibration Motor Dimension (unit: mm)
A |
B |
AB |
BB |
D |
L |
J |
G |
H |
HD |
d |
Bolt |
280 |
180 |
360 |
380 |
298 |
655 |
100 |
30 |
160 |
350 |
38 |
M36 |
3 kW Explosion Proof Vibration Motor Applications
Details
Tips: 3 start-up factors that affect explosion proof vibration motors
1. Thermal factors, such as the influence of the hottest spot temperature during exercise
2. Electrical factors, such as the influence of working voltage, operating overvoltage or electrical stress caused by atmospheric overvoltage.
3. Environmental factors, such as atmospheric pressure, the cause of the insulation cracking of the chemical vibration motor of the surrounding gas.
