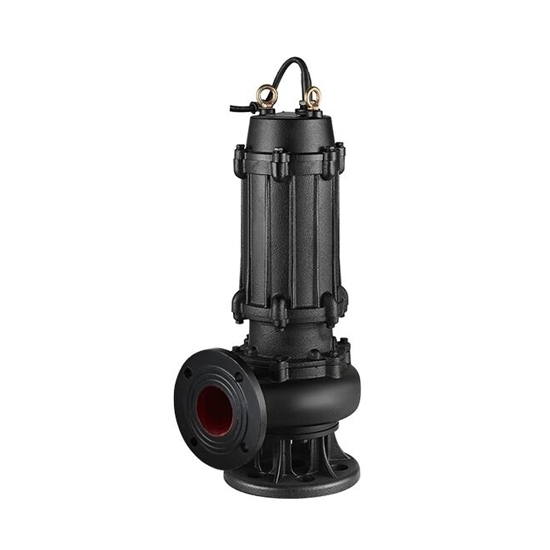

40 HP Submersible Sewage Pump, 3 Phase

40 hp submersible sewage pump has a compact structure and small size, can safely run for more than 8000 hours. Installing sewage pump is easy. Sewage pump for septic tank and pond pumping are the common applications in daily life.

Features:

• Reasonable design, reasonable matching motor, high efficiency.
• Submersible sewage pump with compact structure, small volume, easy to move, easy to install, no need to build pump room.
• Double guide rail automatic coupling installation system, to the industrial sewage pump installation and maintenance has brought great convenience.
• Large flow channel anti-clogging hydraulic parts design, greatly improve the ability of sewage through, can effectively through the cast iron sewage pump diameter of 5 times the fiber material and the diameter of about 50% of the industrial sewage water pump diameter solid particles.
• Mechanical seal adopts double series seal, material is hard corrosion resistant tungsten carbide, durable, wear-resistant, can make the submersible sewage water pump safe continuous operation for more than 8000 hours.

Specification:

• Model: ATO-100WQ120-45-30
• Rated Power: 40 hp (30 kW)
• Rated Voltage: 380V (Please contact us if you need other voltage)
• Rated Flow: 120 m³/h
• Rated Head: 45m
• Inlet Size: 4 inch
• Caliber: 100 mm
• Underwater Penetration (Max): 30m
• Motor Phase: 3 phase
• Body Material: Cast iron
• Rotate Speed: 1450 r/min
• Outlet Pressure: 0.1 MPa
• Weight: 500 kg

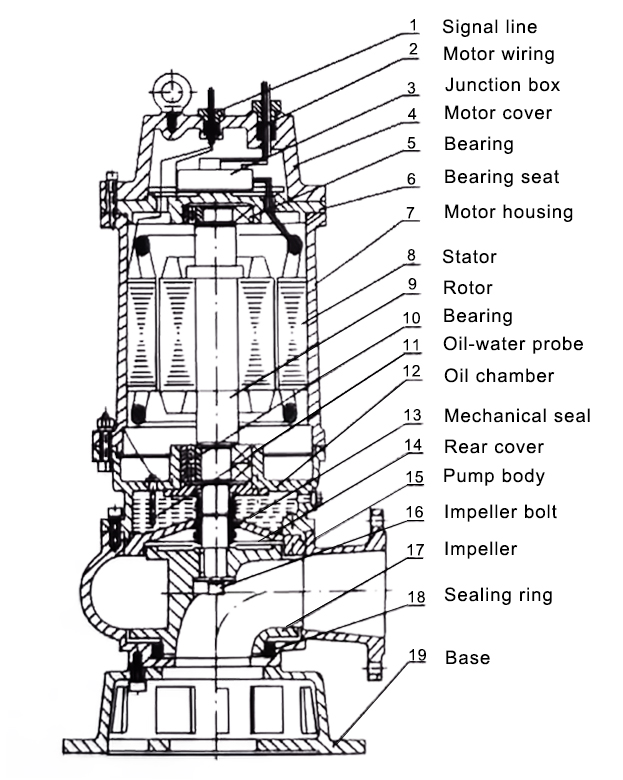

Submersible Sewage Pump Structure:

Tips: What is Submersible Sewage Pump?

Submersible sewage pump is a kind of pump products used for environmental protection industry used to transport solid particles, fiber and other solid-liquid mixed liquid such as domestic sewage, industrial wastewater, mud and so on. Submersible sewage pump by sewage pump, sealing system, submersible motor, control and protection system, automatic installation system and other parts. The sealing system of the pump can effectively prevent liquid from entering the motor cavity and protect the safe operation of the motor. Control and protection system make the pump in the occurrence of water leakage, oil leakage, overload and other faults, timely alarm and shutdown for repair.
