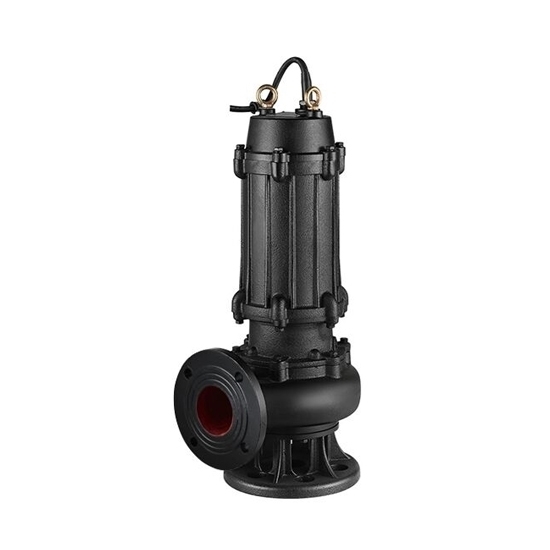

60 HP Submersible Sewage Pump, 3 Phase

4 inch commercial sewage pump with 60 hp rated power for sale. Sewage water pump price is reasonable. The outlet of the 60 hp high head sewage pump is pagoda type, which is convenient for the connection of water pipes.

Features:

• Reasonable design, reasonable matching motor, high efficiency.
• High head sewage pump with compact structure, small volume, easy to move, easy to install, no need to build pump room.
• Double guide rail automatic coupling installation system, to the industrial sewage pump installation and maintenance has brought great convenience.
• Large flow channel anti-clogging hydraulic parts design, greatly improve the ability of sewage through, can effectively through the industrial sewage pump diameter of 5 times the fiber material and the diameter of about 50% of the 3 phase sewage pump diameter solid particles.
• Mechanical seal adopts double series seal, material is hard corrosion resistant tungsten carbide, durable, wear-resistant, can make the cast iron sewage pump safe continuous operation for more than 8000 hours.

Specification:

• Model: ATO-100WQ100-57-45
• Rated Power: 60 hp (45 kW)
• Rated Voltage: 380V (Please contact us if you need other voltage)
• Rated Flow: 100 m³/h
• Rated Head: 57m
• Inlet Size: 4 inch
• Caliber: 100 mm
• Underwater Penetration (Max): 30m
• Motor Phase: 3 phase
• Body Material: Cast iron
• Rotate Speed: 1450 r/min
• Outlet Pressure: 0.1 MPa
• Weight: 600 kg

Submersible Sewage Pump Structure:

Tips: Advantages of Submersible Sewage Pump

• Compact structure and small footprint. The submersible sewage pump can be directly installed in the sewage tank because of its work under the submersible fluid, and there is no need to build a special pump room to install pumps and machines, which can save a lot of capital construction costs.
• Easy installation and maintenance. Small sewage pumps can be installed freely, large sewage pumps are generally equipped with automatic coupling devices. Easy to install and maintain.
• Long continuous operation time. Because sewage pump and motor coaxial, shaft short, rotating parts light weight, so bearing load (radial) is relatively small, life is much longer than the general pump.
