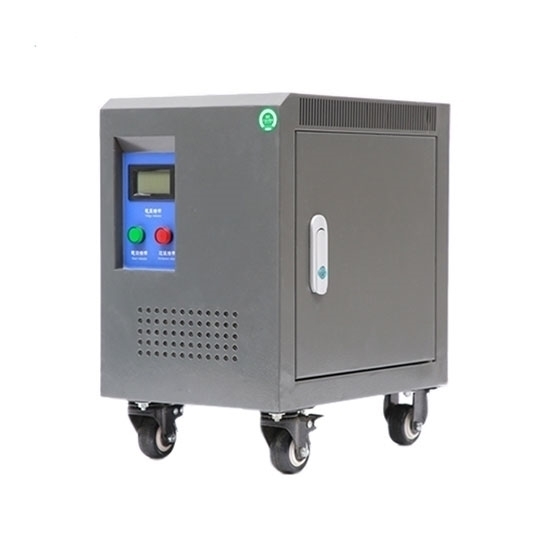

    30kVA 480V to 120V/240V Split Phase Transformer

    5 out of 5 based on 2 reviews | Write a review
    $9,289.76
    Transformer capacity 30kVA, single phase to split phase, step down 480V primary voltage to 120V/240V secondary voltage, overload capacity allows more than 1.2 times the rated load to work for up to 1 hour, making the single-phase transformer harmless.
    *
    *
    *
    *
    *
    SKU: ATO-DGS30kVA
    30-day Returns
    Delivery date: 10-20 days

    Single phase to split phase transformer rated value 30kVA, convert input voltage 480V to output voltage 120V/240V, winding material can select aluminum or copper wire, enclosure protection grade IP20.

    30 kVA Single Phase to Split Phase Transformer Specifications

    Model ATO-DGS30kVA
    Phase Single phase to split phase
    Capacity 30 kVA
    Primary Voltage 1 Phase / 2 phase 110, 120, 208, 220, 230, 240, 380, 415, 440, 460, 480,
    Secondary Voltage 120V/240V AC(L1, L2, N, L+L=240V, L+N=120V)
    Frequency 50/60Hz
    Winding Material Aluminum/Copper wire (Optional)
    Work Efficiency ≥95%
    Insulation Resistance ≥50 MΩ
    Electrical Strength 2000V AC/1 min
    Noise ≤35dB (1 meter)
    Insulation Grade Grade B (130℃), Grade F (155℃), Grade H (180℃)
    Cooling Method Natural or air cooling
    Overload Capacity Allow more than 1.2 times rated load to work for up to 1 hour
    Induced Overvoltage Withstand Test 125Hz/800V/min
    Transformation Ratio <3%
    Air Carrying Current <6%
    Impedance Voltage About 6%
    Total Losses 10%
    Certification CE, ISO
    Temperature -15℃~+45℃
    Humidity ≤90%RH, without condensation
    Altitude <2000m, non corrosive gas and conductive dust
    Enclosure Protection Grade IP20
    Warranty 12 months
    Weight of Aluminium Wire Transformer Open type: 240kg
    Protected type: 278kg
    Weight of Copper Wire Transformer Open type: 232kg
    Protected type: 275kg

    30 kVA Single Phase to Split Phase Transformer Schematic Diagram
    Single phase to split phase transformer schematic diagram
    30 kVA Single Phase to Split Transformer Dimension (Unit: mm)
    Split phase isolation transformer dimension

    Aluminium Wire Transformer Size Copper Wire Transformer Size
    Open type: a*b*c=410*400*580mm Open type: a*b*c=370*360*520mm
    Mouting size: D*E=210*250mm (aperture: 20*10mm) Mouting size: 250*245mm (aperture: 20*10mm)
    Protected type: A*B*C=455*660*710mm Protected type: A*B*C=455*660*710mm



    Details

    Single Phase Isolation Transformer Details

    Tips: What is no-load operation of a transformer?

    The no-load operation of the transformer refers to the working state in which the primary winding of the transformer is connected to the power supply and the secondary winding is open. At this time, the current in the primary winding is called the no-load current of the transformer. No-load current generates a no-load magnetic field. Under the action of the main magnetic field (ie, the magnetic field that cross-links the primary and secondary windings at the same time), an electromotive force is induced in the primary and secondary windings. When the transformer is running at no load, although the secondary side has no power output, the primary side still draws part of the active power from the grid to compensate for the hysteresis loss and eddy current loss caused by the magnetic flux saturation in the iron core | . The size of the hysteresis loss depends on the frequency of the power supply and the area of the hysteresis loop of the core material; the eddy current loss is proportional to the maximum magnetic flux density and the square of the frequency. In addition, there is copper loss caused by no-load current. For transformers of different capacities, the size of no-load current and no-load loss are different.
