    8kVA 240V to 120V/240V Split Phase Transformer

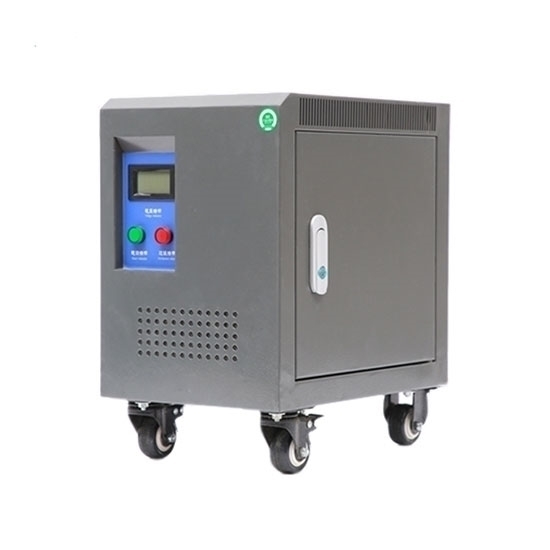

    Picture of 8kVA 240V to 120V/240V Split Phase Transformer
    Picture of 8kVA 240V to 120V/240V Split Phase Transformer
    Picture of 8kVA 240V to 120V/240V Split Phase Transformer

    8kVA 240V to 120V/240V Split Phase Transformer

    Write a review
    $3,765.98
    8kVA single phase to split phase transformer for 50/ 60Hz AC circuit, convert the input voltage AC 240V to the output voltage 120V/240V AC. The characteristics of low cost and environmental protection and energy saving make this transformer an ideal choice for various applications.
    *
    *
    *
    *
    *
    SKU: ATO-T-DGS8kVA
    30-day Returns
    Delivery date: 10-20 days

    Single phase to split phase transformer capacity 8kVA, transform primary voltage 240V to secondary voltage 120V/240V, IP20 protection grade enclosure makes the device suitable for indoor and outdoor applications.

     8 kVA Single Phase to Split Phase Transformer Specifications

    Model ATO-T-DGS8kVA
    Phase Single phase to split phase
    Capacity 8 kVA
    Primary Voltage 1 Phase / 2 phase 110, 120, 208, 220, 230, 240, 380, 415, 440, 460, 480,
    Secondary Voltage 120V/240V AC（L1, L2, N, L+L=240V, L+N=120V）
    Frequency 50/60Hz
    Winding Material Aluminum/Copper wire (Optional)
    Work Efficiency ≥95%
    Insulation Resistance ≥50 MΩ
    Electrical Strength 2000V AC/1 min
    Noise ≤35dB (1 meter)
    Insulation Grade Grade B (130℃), Grade F (155℃), Grade H (180℃)
    Cooling Method Natural or air cooling
    Overload Capacity Allow more than 1.2 times rated load to work for up to 1 hour
    Induced Overvoltage Withstand Test 125Hz/800V/min
    Transformation Ratio <3%
    Air Carrying Current <6%
    Impedance Voltage About 6%
    Total Losses 10%
    Certification CE, ISO
    Temperature -15℃~+45℃
    Humidity ≤90%RH, without condensation
    Altitude <2000m, non corrosive gas and conductive dust
    Enclosure Protection Grade IP20
    Warranty 12 months
    Weight of Aluminium Wire Transformer Open type: 80kg
    Protected type: 102kg
    Weight of Copper Wire Transformer Open type: 90kg
    Protected type: 124kg

    8 kVA Single Phase to Split Phase Transformer Schematic Diagram
    Single phase to split phase transformer schematic diagram
    8 kVA Single Phase to Split Transformer Dimension (Unit: mm)
    Split phase isolation transformer dimension

    Aluminium Wire Transformer Size Copper Wire Transformer Size
    Open type: a*b*c=290*300*350mm Open type: a*b*c=300*310*345mm
    Mouting size: D*E=150*180mm (aperture: 20*10mm) Mouting size: 190*190mm (aperture: 20*10mm)
    Protected type: A*B*C=380*530*560mm Protected type: A*B*C=380*530*560mm



     Details

    Single Phase Isolation Transformer Details

    Tips: Transformer overload operation

    Before overload operation, check whether the transformer has serious defects (such as abnormal cooling system, serious oil leakage, partial overheating, abnormal analysis results of dissolved gas in oil, etc.) or insulation weakness. If so, it should not be overrun. Load operation. When the transformer is running under overload, the spare cooler should be put into operation immediately, and the temperature of the upper layer of the transformer, ambient temperature and time should be observed. And record the overload time and overload multiple, the overload multiple during normal overload operation.
