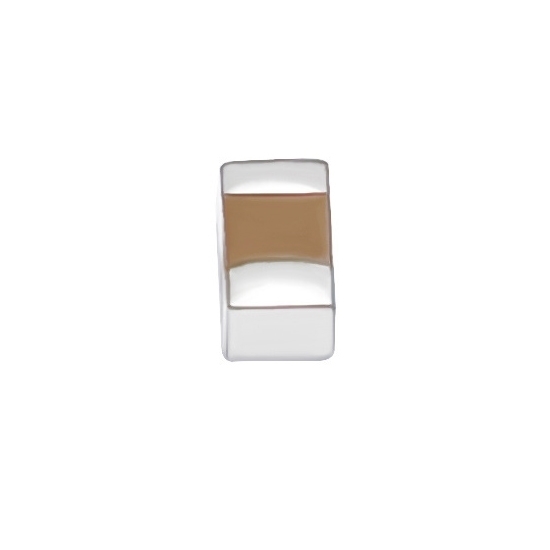

    22μF 25V Multilayer Ceramic Chip Capacitor

    5 out of 5 based on 1 reviews | Write a review
    $25.39
    Wholesale price SMD multilayer ceramic chip capacitor is widely used for household appliances with ceramic (porcelain) medium material, 22μF (22000000pF, 22000nF) capacitance, medium rated voltage 25V, 10% tolerance, 1000PCS per roll. This MLCC surface mount capacitor is compact and high performance.
    SKU: ATO-MLCC-25V226K
    This product has a minimum quantity of 10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    SMD Multilayer ceramic chip capacitor is stable and has high capacitance. Laminated monolithic structure, excellent solderability and solder resistance, MLCC capacitors are suitable for reflow and wave soldering, various filtering and coupling circuits.

    Specification

    • Model: ATO-25V226K1206
    • Series: Multilayer Ceramic Chip Capacitor
    • Capacitance: 22μF (22000000pF, 22000nF)
    • Rated voltage: 50V
    • Tolerance: 20%
    • Operating Temperature Range: -40℃ - 105℃
    • Lead Type: SMD
    • Size: 3.2mm
    • Thickness: 1.6mm
    • Package: 1000PCS / roll
    • Application: Household Appliances
    • Medium Material: Ceramic (Porcelain)
    • Loss: 0.01%
    • Weight: 0.3kg

    Structure

    Structure of MLCC multilayer ceramic capacitor

    Structure of multilayer ceramic chip capacitor

    Tips: Factors affecting the working temperature change of SMD ceramic capacitors

    • Poor heat dissipation.
    • Accidentally placing the product in the heat radiation area.
    • The product itself is overloaded.

    When the AC current is loaded, the capacitor itself will generate heat due to the existence of the equivalent series resistance. Due to the accumulated charge and discharge, the capacitor and other devices will be in a heating state, so it is necessary to pay attention to placing other capacitors in the frequency circuit to vacate enough the remaining space. The capacitor must not continue to be used in the state of overvoltage, which will not only make the product invalid, but also damage the product.

    Existing reviews of 22μF 25V Multilayer Ceramic Chip Capacitor
    Nice multilayer ceramic chip capacitor.
    These 22μF 25V SMD multilayer ceramic chip capacitors came in a timely fashion and worked great with an altimeter circuit I built. Quality parts.
    From: Malcolm | Date: 28/06/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
