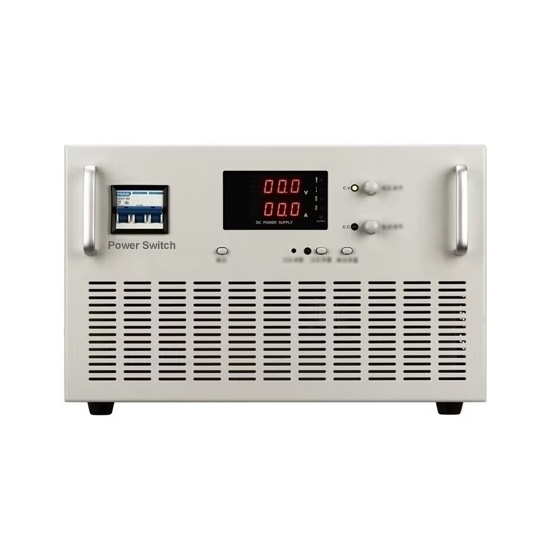

    100A 100V 10000W Variable DC Power Supply

    $4,199.89
    Variable DC power supply employs digital control mechanisms, enabling users to easily and accurately set the desired voltage and amperage levels. Its regulated nature ensures a stable output, safeguarding connected devices from voltage fluctuations or irregularities. Factory price adjustable DC power supply is switching mode with 10000W DC output power, 0 to 100A output current, 0 to 100V output voltage, selectable single phase 110V, three phase 220V or 380V±10% AC input, 3 digit LED display.
    *
    SKU: ATO-VDCPS100100K
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    100 amp 100 volt variable DC power supply features adjustable voltage and current outputs, allowing users to fine-tune settings based on specific requirements. The versatility and precision of this adjustable DC power supply make it an essential tool for electronics labs, testing environments, and various technical applications, offering reliability and adaptability in powering electronic components and systems.

    Specification

    Model ATO-JK100100K
    Input Voltage Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%)
    (240V, 400V, 415V, 440V, 460V 480V can be customized)
    Output Voltage Range 0-100V
    Output Current Range 0-100A
    Output Power 10000W
    Frequency 50Hz/60Hz
    Adjustable Mode Pulse Width Modulation (PWM) Type
    Transistor Connection Method Full Bridge
    Output Type Dual
    Display 3 digit
    Display Accuracy Output Voltage ±0.5%, Output Current ±0.5%
    Efficiency >86%
    Load Regulation (CV) Stable Voltage ≤0.5%, Constant Current ≤0.5%
    Line Regulation (CV) Stable Voltage ≤0.5%
    Ripple Voltage ≤1%
    Insulation Resistance Input-Output: ≥20MΩ
    Input-Chassis: ≥20MΩ
    Output-Chassis:≥80MΩ
    Dielectric Strength Input-Output: AC1500V, 10mA, 1 minute
    Input-Chassis: AC1500V, 10mA, 1 minute
    Output-Chassis: AC1500V, 10mA, 1 minute
    Protection Over Load and Over Voltage Protection
    Current Imbalance ≤5% + 0.5A
    Operating Ambient -10℃ to + 45℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Overheat Protection Ambient Threshold 70℃ to 80℃
    Mean Time Between Failures ≥50000h
    Cooling Duct Internal Cooling Air Duct Forward and Exit
    Certification CE, RoSH
    Warranty 12 Months
    Size 700 (L) x 480 (W) x 295 (H) mm/ 630 (L) x 520 (W) x 780 (H) mm
    Weight 45kg (220V)/63kg (110V)


    Detail

    Details of 100A 100V Adjustable DC Power Supply

    Tips: Is there a minimum load requirement for variable DC power supplies?

    Variable DC power supplies typically have a minimum load requirement to ensure stable operation and prevent voltage spikes. This requirement is often specified by the manufacturer and varies among different models. Below the minimum load, the power supply may experience issues such as voltage regulation problems, increased ripple, or even complete failure. This is because the control circuitry relies on a certain level of current flow to maintain stability. Users should consult the product's datasheet or manual to determine the specific minimum load requirements for their variable DC power supply. It's essential to adhere to these specifications to guarantee reliable and safe operation, avoiding potential damage to the power supply and the connected electronic components.
