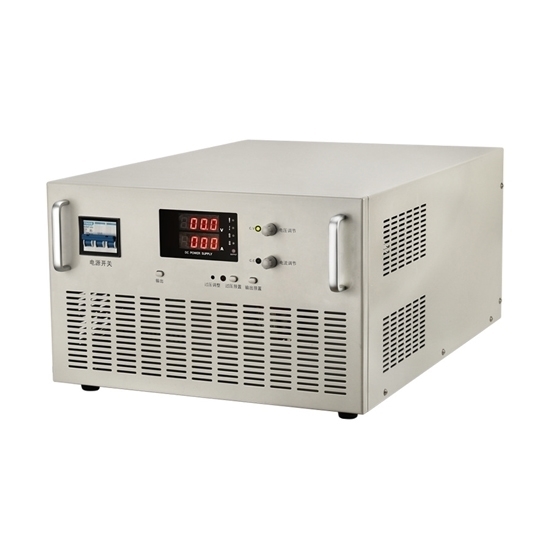

200 amp 100 volt variable DC power supply unit serves as a dependable source of power, supplying the necessary energy for testing, prototyping, and powering electronic circuits. Its regulated nature guarantees a stable output, safeguarding connected devices from voltage fluctuations.
Specification
Model |
ATO-JK100200K |
Input Voltage |
Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%) (240V, 400V, 415V, 440V, 460V 480V can be customized) |
Output Voltage Range |
0-100V |
Output Current Range |
0-200A |
Output Power |
20000W |
Frequency |
50Hz/60Hz |
Adjustable Mode |
Pulse Width Modulation (PWM) Type |
Transistor Connection Method |
Full Bridge |
Output Type |
Dual |
Display |
3 digit |
Display Accuracy |
Output Voltage ±0.5%, Output Current ±0.5% |
Efficiency |
>86% |
Load Regulation (CV) |
Stable Voltage ≤0.5%, Constant Current ≤0.5% |
Line Regulation (CV) |
Stable Voltage ≤0.5% |
Ripple Voltage |
≤1% |
Insulation Resistance |
Input-Output: ≥20MΩ |
Input-Chassis: ≥20MΩ |
Output-Chassis:≥80MΩ |
Dielectric Strength |
Input-Output: AC1500V, 10mA, 1 minute |
Input-Chassis: AC1500V, 10mA, 1 minute |
Output-Chassis: AC1500V, 10mA, 1 minute |
Protection |
Over Load and Over Voltage Protection |
Current Imbalance |
≤5% + 0.5A |
Operating Ambient |
-10℃ to + 45℃/ 85%RH |
Storage Ambient |
-10℃ to + 80℃/ 80%RH |
Overheat Protection Ambient Threshold |
70℃ to 80℃ |
Mean Time Between Failures |
≥50000h |
Cooling Duct |
Internal Cooling Air Duct Forward and Exit |
Certification |
CE, RoSH |
Warranty |
12 Months |
Size |
700 (L) x 480 (W) x 295 (H) mm |
Weight |
45kg |
Detail
Tips: What is the significance of power supply regulation?
Power supply regulation is crucial for stable and reliable operation of electronic devices. It ensures that electronic components receive a consistent and optimal voltage, preventing fluctuations that could lead to malfunctions or damage. A regulated power supply mitigates the risk of voltage spikes or drops, which can compromise the performance and lifespan of sensitive equipment. Additionally, it aids in reducing electromagnetic interference and noise, promoting cleaner signals in audio, video, and communication systems. This stability is especially vital in critical applications such as medical devices, aerospace, and telecommunications, where precision and reliability are paramount. In summary, power supply regulation safeguards electronic systems, enhancing their efficiency, longevity, and overall performance while minimizing the potential for operational errors or failures.
