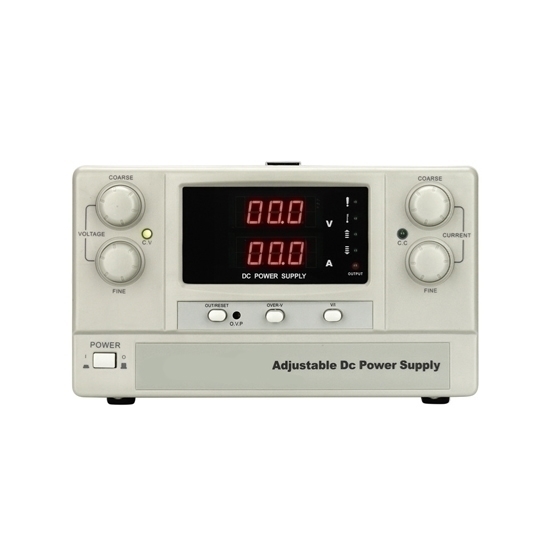

    30A 100V 3000W Variable DC Power Supply

    $1,223.19
    ATO variable DC power supply provides an adjustable and regulated source of power, with 0 to 30 amp output current, 0 to 100 volt output voltage, 3000W DC output power, 3 digit LED display, selectable single phase 110V or 220V±10% AC input. This versatile device allows users to control both voltage and current parameters, making it suitable for a wide range of electronic applications.
    *
    SKU: ATO-VDCPS10030K
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    30A 100V variable DC power supply provides a reliable and adjustable power source for various applications. This variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

    Specification

    Model ATO-JK10030K
    Input Voltage Single Phase 110V or 220V AC (+/- 10%)
    Output Voltage Range 0-100V
    Output Current Range 0-30A
    Output Power 3000W
    Frequency 50Hz/60Hz
    Adjustable Mode Pulse Width Modulation (PWM) Type
    Transistor Connection Method Full Bridge
    Output Type Dual
    Display 3 digit
    Display Accuracy Output Voltage ±0.5%, Output Current ±0.5%
    Efficiency >86%
    Load Regulation (CV) Stable Voltage ≤0.5%, Constant Current ≤0.5%
    Line Regulation (CV) Stable Voltage ≤0.5%
    Ripple Voltage ≤1%
    Insulation Resistance Input-Output: ≥20MΩ
    Input-Chassis: ≥20MΩ
    Output-Chassis:≥80MΩ
    Dielectric Strength Input-Output: AC1500V, 10mA, 1 minute
    Input-Chassis: AC1500V, 10mA, 1 minute
    Output-Chassis: AC1500V, 10mA, 1 minute
    Protection Over Load and Over Voltage Protection
    Current Imbalance ≤5% + 0.5A
    Operating Ambient -10℃ to + 45℃/ 85%RH
    Storage Ambient -20℃ to + 70℃/ 80%RH
    Overheat Protection Ambient Threshold 70℃ to 80℃
    Mean Time Between Failures ≥50000h
    Cooling Duct Internal Cooling Air Duct Forward and Exit
    Certification CE, RoSH
    Warranty 12 Months
    Size 303 (L) x 255 (W) x 155 (H) mm
    Weight 13kg


    Detail

    Details of 30A 100V Adjustable DC Power Supply

    Tips: How do I protect my circuits from overvoltage when using a variable DC power supply?

    To protect circuits from overvoltage when using a variable DC power supply, employ a voltage regulator or a crowbar circuit. A voltage regulator maintains a stable output voltage, preventing it from exceeding a predetermined level. Adjustable voltage regulators like LM317 allow you to set the desired output. Alternatively, a crowbar circuit involves a zener diode and a thyristor. The zener diode monitors voltage; when it exceeds a threshold, it triggers the thyristor to short the circuit, blowing a fuse or triggering a circuit breaker. Properly sized fuses and transient voltage suppressors can offer additional protection. Regularly check and calibrate your equipment, and consider using an overvoltage protection module. These measures safeguard your circuits against potential damage due to fluctuations in the variable DC power supply.
