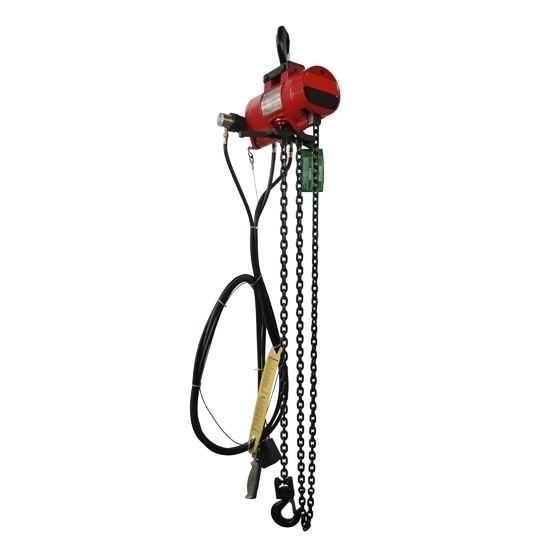

    2000 lb. 20 ft. Air Chain Hoist

    5 out of 5 based on 3 reviews | Write a review
    $3,951.99
    Industrial air powered chain hoist for sale at factory price, 2000 lb. capacity, 20 ft. lift, is designed with heat-treated steel alloy load chain and spur gears for lifting and moving heavy loads easily and safely in dusty or dirty enveronments.
    SKU: ATO-ACH-200020
    30-day Returns
    Free Shipping

    1 ton cap. 20 ft. lift air operated chain hoist is used for lifting and moving heavy loads in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.

    Specification

    Air Chain Hoist Model ATO-29HX89
    Capacity 2000 lb. (1 ton)
    Lift 20 ft.
    Lift Speed 0 to 23 fpm
    Min Between Hooks 18
    Reeving 2
    Housing L 12 1/8 in.
    Housing W 10 3/16 in.
    Chain Length 11' - 5", 22' - 7"
    Air Pressure Recommended 90 psi
    Air Consumption 48 SCFM at 90 psi
    Suspension Hook
    Control Pendant Throttle
    Air Inlet Size 3/8 NPTF
    Air Supply Hose 1/2 I.D. min.
    Air Exhaust 1/2 NPTF
    Net Weight (Basic Hoist) 59 lbs (27 kg)
    Metal Chain Container Model ATO-29HX92
    Chain Lift Single 20 ft.
    Width 4.5 in.
    Height 17 in.

    Dimensions (Unit: mm)

    Dimension of 2000 lb air chain hoist

    Tips for using air chain hoist

    • The air chain hoist shall not lift and unload heavy objects from the side, and it is forbidden to use overload.
    • Avoid obstructions within the operator's walking range and routes where heavy objects pass
    • When using, please fix the workpiece firmly. Keep hands and rags away from the rotating parts.
    • In the process of use, the operator should check whether the wire rope is randomly buckled, knotted, grooved, worn, etc., and if it occurs, it should be eliminated in time.
    • Do not artificially use the limiter to stop the lifting of heavy objects or stop the operation of the equipment in daily work.
    • The up and down, left and right directions of the manual buttons should be accurate and sensitive, and the motor and reducer should have no abnormal noise.
    • Special maintenance personnel should be set up to check the main performance and safety status of the pneumatic chain hoist once a week, and find faults and eliminate them in time.
    • After the work is completed, turn off the main air power switch and cut off the main air power supply.
