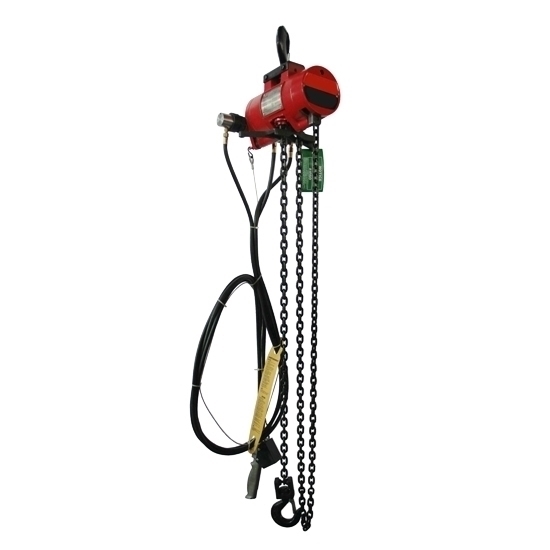

1 ton cap. 10 ft. lift air chain hoist is used for lifting and moving heavy loads easily and safely in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.
Specification
Air Chain Hoist |
Model |
ATO-29HX88 |
Capacity |
2000 lb. (1 ton) |
Lift |
10 ft. |
Lift Speed |
0 to 23 fpm |
Min Between Hooks |
18 |
Reeving |
2 |
Housing L |
12 1/8 in. |
Housing W |
10 3/16 in. |
Chain Length |
11' - 5", 22' - 7" |
Air Pressure Recommended |
90 psi |
Air Consumption |
48 SCFM at 90 psi |
Suspension |
Hook |
Control |
Pendant Throttle |
Air Inlet Size |
3/8 NPTF |
Air Supply Hose |
1/2 I.D. min. |
Air Exhaust |
1/2 NPTF |
Net Weight (Basic Hoist) |
59 lbs (27 kg) |
Metal Chain Container |
Model |
ATO-29HX91 |
Chain Lift |
Single 20 ft. |
Width |
4.5 in. |
Height |
12 in. |

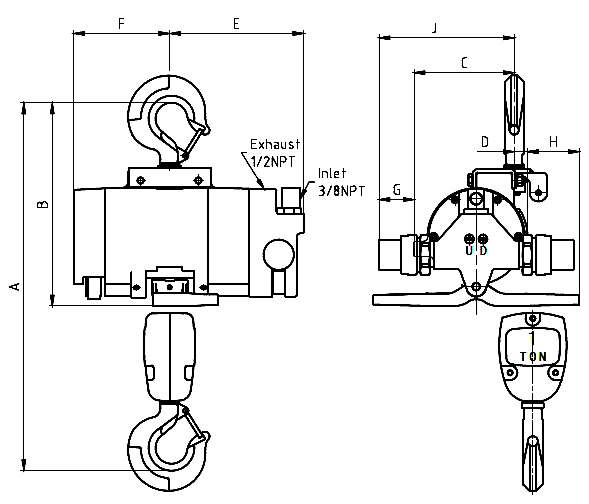

Dimensions (Unit: mm)
Tips: Air chain hoists applications
Air chain hoists have been widely used in all walks of life, and the load range varies from 250 kg to 30 tons depending on the model. The pneumatic chain hoist can be driven only by supplying a certain pressure of compressed air, achieving low energy consumption and high efficiency. It also has the function of gas-cut protection, which ensures that the workpiece does not fall or fall in the case of sudden gas-cut. Due to the good explosion-proof performance of the pneumatic hoist, it is widely used in chemical, textile, painting, logistics, dock and other flammable, explosive, high temperature, high dust and corrosive workplaces. Because of its high frequency and infinitely variable speed characteristics, it is favored by the manufacturing industries such as automobiles, tractors, motors, refrigerators, etc., and the logistics industry with large output and strong continuous operation.
