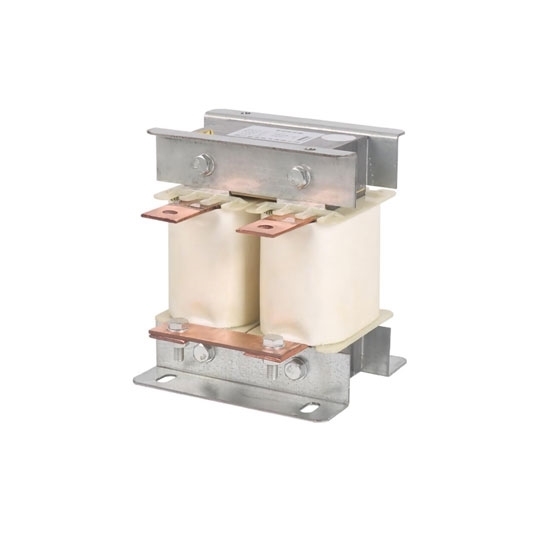

    20 hp (15 kW) DC Reactor, Single Phase

    5 out of 5 based on 1 reviews | Write a review
    $169.32
    Cost-effective 20 hp DC reactor for VFD, power 15 kW, rated current 40A, 1 phase, DC line reactor can reduce the current ripple value, improve the input power factor, and can suppress the harmonics generated by the converter device.
    *
    *
    SKU: ATO-DCR-20
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Singel phase DC reactor with 20 hp (15 kW), rated operating voltage: 400V-1200V/50Hz, small size, light weight and easy to use.

    Specification:

    Model ATO-DCL-40
    Phase 1 Phase
    Power Adapter 15 kW (20 hp)
    VFD Voltage Adapter 220V-1200V (Contact us for other voltages)
    Rated Current 40A
    Inductance 0.8mH
    Insulation Grade F.H
    Dimension 120*115*130mm (L*W*H)
    Mounting Dimension 100*65mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    ≥100MV
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 4.5kg

    Features
    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    Dimension (unit: mm)
    DC reactor dimensionDetails

    Single Phase DC Reactor Details

    Tips: Filter reactor function

    Filter reactors are widely used in high and low voltage filter cabinets, connected in series with filter capacitors, tuned to a certain resonance frequency, and used to absorb harmonic currents of the corresponding frequency in the power grid to eliminate high harmonics from the main transformer and other systems Hazard of electrical equipment.
    After the filter reactor and the capacitor are connected in series, not only can it effectively absorb the harmonics of the power grid, but also improve the power factor of the system, which plays a greater role in the safe operation of the system.
