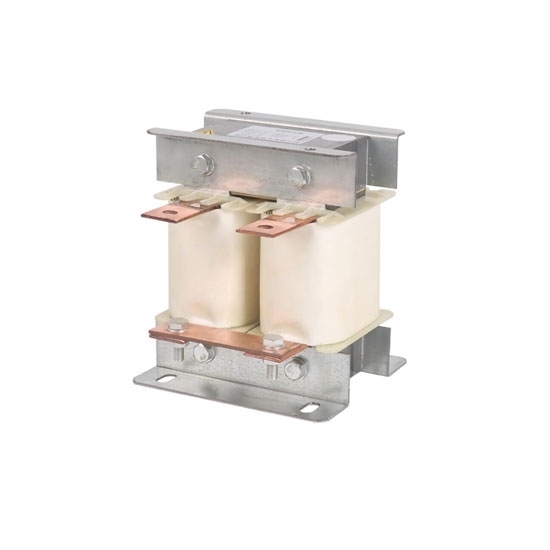

    40 hp (30 kW) DC Reactor, Single Phase

    $317.69
    40 hp DC smoothing reactor in hvdc, power 30 kW, rated current 80A, DC line reactor is ideal for reducing harmonic interference, single phase, voltage adapter 220V-1200V, 12 months warranty.
    *
    *
    SKU: ATO-DCL-40
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    DC line reactor for vfd, 40 hp (30 kW), dc output voltage 220V, 380V and 400V areavailable, effectively improve the power factor and reduce the AC pulse of the DC bus.

    Specification:

    Model ATO-DCL-80
    Phase 1 Phase
    Power Adapter 30 kW (40 hp)
    VFD Voltage Adapter 220V-1200V (Contact us for other voltages)
    Rated Current 80A
    Inductance 0.395
    Insulation Grade F.H
    Dimension 132*125*140mm (L*W*H)
    Mounting Dimension 110*75mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    ≥100MV
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 10.5kg

    Features
    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    Dimension (unit: mm)
    DC reactor dimensionDetails

    Single Phase DC Reactor Details
    Tips: Starting reactor function

    AC asynchronous motors have a large starting current, which is 5-7 times the rated current. Therefore, when a large motor is started, it will cause a large voltage drop on the power grid and have a greater impact on the line's electrical equipment. The voltage reduction method is usually used to limit the starting current of the motor. Reactors can be started in series on the motor's line in the case of reduced voltage starting. Generally, the power of the matched motor is 220KW-4800KW.
