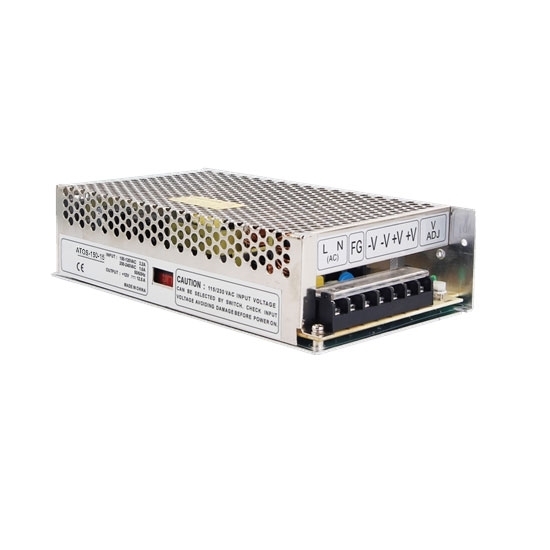

15V DC 10A 150W Switching Power Supply

$63.34

Favorable price and high quality 15V DC 10A 150W switching power supply has dual input voltage: AC 110V/220V which is selectable by switch, ideal SMPS power supply for keeping the voltage stability and ensuring the safety in use.

SKU: ATO-SMPS-150-15

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Features

Universal AC input range selectable by a switch
Protections: short circuit, overvoltage and overload
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
Low cost and high reliability

Specification

Model		ATO-S-150-15
Output	DC Voltage	15V
	Rated Current	10A
	Current Range	0 ~ 10A
	Rated Power	150W
	Ripple & Noise (Max.)(Note 2)	180mVp-p
	Voltage Adjust Range	13.5 ~ 16.5V
	Voltage Tolerance (Note 3)	±1.0%
	Line Regulation	±0.3%
	Load Regulation	±0.3%
	Setup, Rise, Holdup Time	100ms, 50ms, 20ms at full load
Input	Voltage Range	88 ~ 132VAC/176V~264VAC (selected by a switch) or 248 ~ 370VDC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	84%
	AC Current (Typ.)	3.2A/115V AC 1.6A/230V AC
	Inrush Current (Typ.)	Cold start: 35A
	Leakage Current	<3.5mA/240V AC
Protection	Overload	105~150% rated output power Protection type: Shut down output voltage, re-power on to recover.
Protection	Overvoltage	17.25V ~ 20.3V Protection type: Shut down output voltage, re-power on to recover.
Environment	Working Temperature	-10 ~ +60℃
	Working Humidity	20~90% RH non-condensing
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH non-condensing
	Temperature Coefficient	±0.03%/℃ (0~50℃)
	Vibration	10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
Safety & EMC (Note 4)	Safety Standards	UL1012 UL60950-1, TUV EN60950-1, CCC GB4943 Approved
	Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
	EMC Emission	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2, -3
	EMC Immunity	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, light industry level, criteria A
Others	MTBF	≥286.7K hrs MIN. MIL-HDBK-217F (25℃)
	Dimension	19911050mm (LWH)
	Weight	0.8kg
Note	1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance includes set up tolerance, line regulation and load regulation. 4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

Dimensions (Unit: mm)

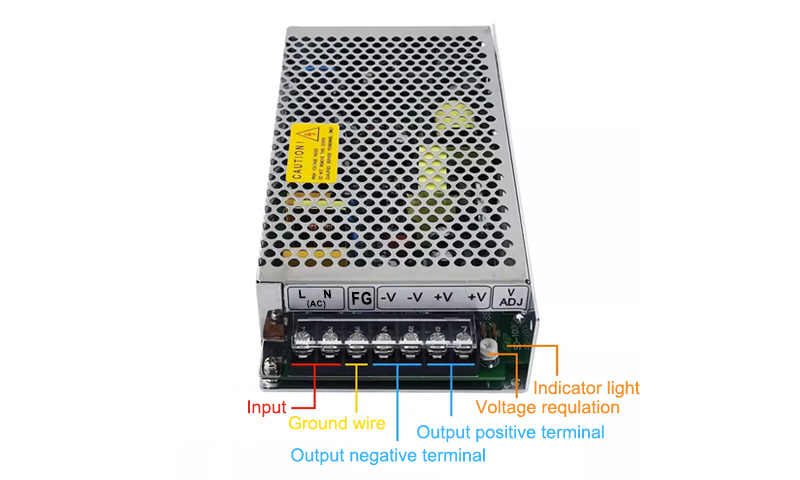

Details

SMPS Power Supply Applications

Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: Troubleshooting the interrupted DC output and unstable voltage output of switching power supply

If the power fuse remains in perfect condition but there is no DC output at various levels in loaded condition, it may be caused by open circuit, short circuit, overvoltage, overcurrent, failure of auxiliary power supply, failure of oscillating circuit, over load of power supply, breakdown of rectifier diode in high-frequency rectification and smoothing circuit, or electric leakage of smoothing capacitor. If voltage output remains zero after checking secondary components by multimeter and clearing breakdown, overload or short circuit of high-frequency rectifier diode, it can be confirmed there is problem with control circuit of power supply. If there is voltage output at some parts, that means the onboard circuit works properly and it is problem of high-frequency rectification and smoothing circuit. High-frequency filtering circuit mainly uses rectifier diode and low-voltage filtering capacitor to output DC. If the rectifier diode breaks down, the circuit will be unable to output voltage. In addition, electric leakage of filtering capacitor results in unstable voltage output. Damaged components can be found out by checking relevant parts with a multimeter.
