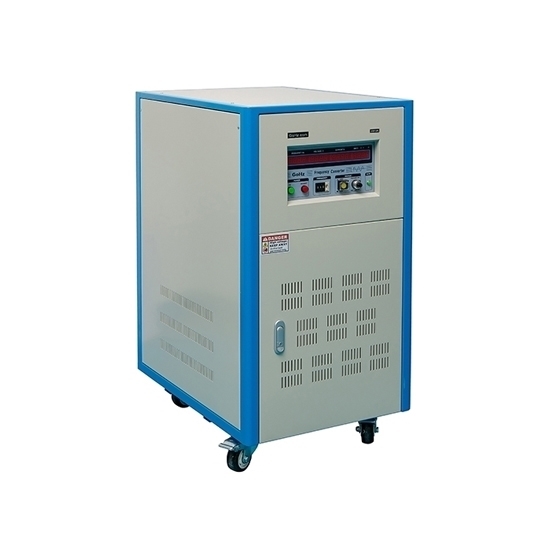

15kVA Single Phase 120v 60Hz to 230v 50Hz Converter

5 out of 5 based on 11 reviews | Write a review

$5,615.52

15 kVA single phase 120V 60Hz (e.g. US) to 230V 50Hz (e.g. Singapore) frequency converter, change 110V 60Hz to 220V 50Hz by a single step up converter, variable output frequency and voltage (V/Hz), up to 300V, 400Hz adjustable.

Input Voltage (Single Phase) *

Output Frequency *

50Hz/60Hz
400Hz [+$199.00]

SKU: HZ-50-1115

Qty:

30-day Returns

Delivery date: 6-12 days

Overview
Related Video

Highly reliable 15 kVA solid state frequency converter, 220V/230V/240V 50 Hz input to 110V/120V 60 Hz output (vice versa), make international 50/60 Hz power system compatible easily.

Specification:

Model	HZ-50-1115
Capacity	15 kVA
Dimension	680 (D)500 (W)970 (H) mm
Weight	150 kg
Input	Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 125A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 62.5A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Wiring and Testing a Single Cabinet Frequency Converter

Here is a video about the operating steps of the cabinet frequency converter. This video gives a rundown of how to wire and test a 1 single cabinet frequency converter using a multimeter.

Tips: Influence of 50Hz 60Hz frequency exchange to rotating equipment

It mainly discusses the rotating body of the motor. For instance, when the 60Hz motor is connected with 50Hz power supply, under the premise of unchanged voltage, it can be known that the rpm reduces for 1.2 times when the frequency lowers for 1.2 times, the magnetic flux increases for 1.2 times, the no-load current increases. As the reactance value decreases, the starting current increases accordingly. If the voltage of the power supply is not reduced, the motor output torque will be increased. The temperature rise of the motor winding will rise. As a result, the motor might be damaged after being operated for a long period. Meanwhile, because of the breakage of the motor revolving speed, its air circulation decreases, resulting in the reduced ventilation quantity and weakened heat dispersion.

MOS Tube Testing in a Frequency Converter

In this video, we first show you the internal structure of our frequency converter, so that you know the exact location of the MOS tube in the converter, and then we use a multimeter to test these tubes in diode mode and ohm range respectively. In the process, we also explain to you how to judge the condition of the equipment.

Frequency Converter Troubleshooting: CBB65 Capacitor Testing

This video will walk you through the steps of how to test the CBB65 capacitor in a frequency converter using a multimeter.

Frequency Converter Driver Board Test

This is one of the ATO single-phase frequency converter repair tutorial series. In this video, we show you how to simply test the driver board in the variable frequency power supply using a multimeter.

Pre-maintenance preparation of frequency converters

In this presentation, we show you the maintenance preparation procedure for an ATO single-phase frequency converter (cabinet version), specifically, involving the disconnection of the internal bridge rectifier.

Cabinet Frequency Converter Wiring and Testing

This video gives a rundown of how to wire and test a 1 single cabinet frequency converter using a multimeter. ATO provides a wide range of high quality single and three phase frequency converter available in rack-mounting and cabinet styles. Rated capacity ranges from 500VA/1kVA/2kVA to 200kVA. In addition to the typical frequency conversion between 50Hz and 60Hz, our converters also provide the maximum output frquency of 400Hz, tailored to various industrial application requirements.

Frequency Converter 60Hz to 50Hz Operation Demo

This video is a brief demo of on-site operation of ATO 1-phase frequency converters that are able to convert 110V 60Hz to 230V 50Hz or vice versa. Besides, we also provide versions of 120V 60Hz to 220v 50Hz, 220V 50Hz to 110V 60Hz, 240V 50Hz to 120V 60Hz for option.

Existing reviews of 15kVA Single Phase 120v 60Hz to 230v 50Hz Converter

I am trying to find out more about the frequency converter I have

My old boss purchased it for his boat. After being told it won't work on a boat he no longer had need of it and I took it over. It has been in storage since he gave it to me. I am trying to sell it off as I am unable to use it, However he also got rid of the invoice. I am just trying to ensure I give the correct details when listing it for sale.

It receives 60hz and then converts it to a higher Hz of 120?

I am in no way technically inclined and just took the thing because I thought I could use it in my house.

From: Ivana | Date: 21/02/2024
