High-performance digital vernier height gauge for sale online with 0-150mm measuring range, error ±0.02mm. The magnetic base of digital vernier height gauge can be easily positioned for measurements on cast iron benchtops.
Specification
Model: ATO-DHG-150
Range: 0-1000mm
Voltage: 3V
Resolution: 0.01mm
Error: ±0.02mm
Base Material: Plastic magnetic
Body Material: Plastic body
Battery Type: CR2032 3V lithium battery
Weight: 0.6kg

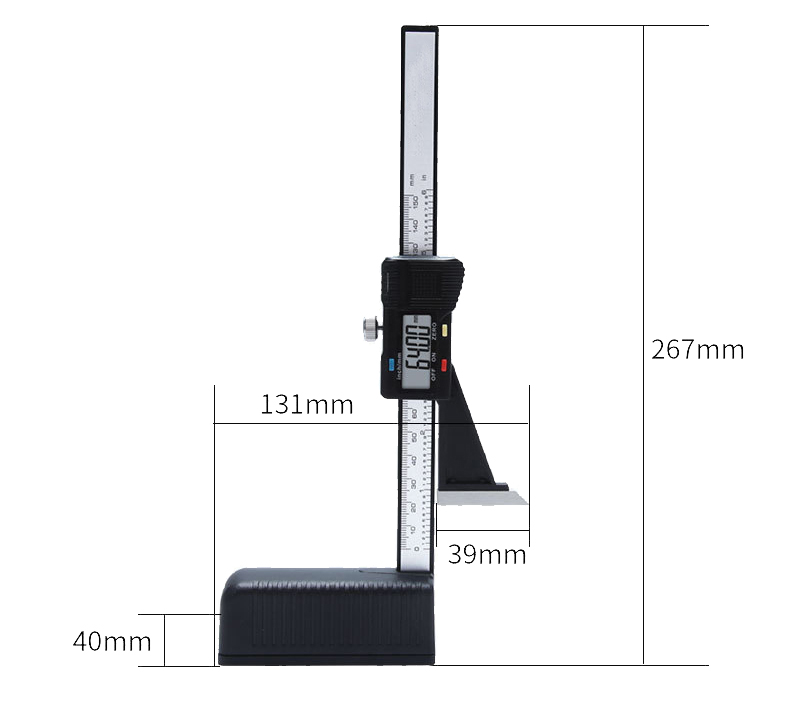

Dimension (mm)
Details
Application
ATO digital height gauges are also called height gauges. As the name suggests, its main purpose is to measure the height of workpieces, and it is also often used to measure shape and position tolerances, and sometimes to mark lines. Digital height gauges are mainly used in the automotive industry, manufacturing, science, and research industries.
Tips: What is a digital height gauge?
Digital height gauges are also called height gauges. As the name suggests, its main purpose is to measure the height of workpieces, and it is also often used to measure shape and position tolerances, and sometimes to mark lines. Depending on the situation of use, there are single-column and double-column types; the double-column type is mainly used in more precise or large measuring range occasions; 0-300, 0-500 is common for the single-column type.
