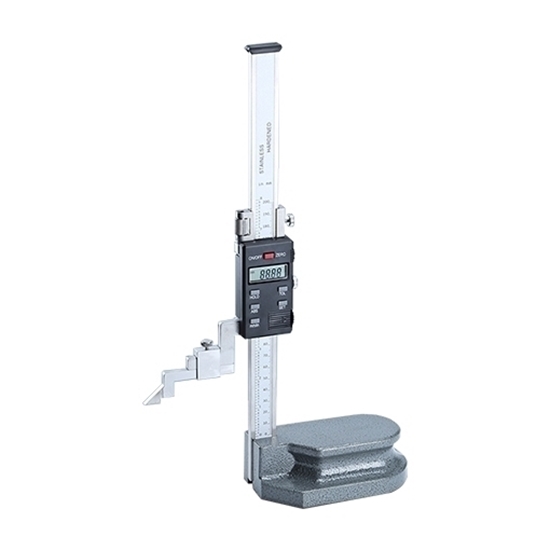

    Digital Height Gauge, 0-1000mm, 0.01mm

    $1,112.38
    Reliable ATO digital height gauge with a resolution of 0.01mm, measurement range of 0-1000 mm. The 1000mm vernier height gauge has the advantages of being handy, high quality, and easy to use.
    SKU: ATO-DHG-1000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy a cheap digital veinier height gauge online which with a resolution of 0.01mm, 0-1000mm wide measuring range, error of ±0.07mm. The large LCD screen on this electronic digital altimeter allows you to get accurate readings quickly and easily. It is a trusted tool used by professionals and do-it-yourselfers alike.

    Specification

    Model: ATO-DHG-1000
    Range: 0-1000mm
    Voltage: 1.5V

    Resolution: 0.01mm
    Error: ±0.04mm
    Responding Speed: 1 m/s

    Body Material: 4CR13 stainless steel
    Battery Type: 1.5 button battery
    Weight: 26kg

    Dimension (mm)

    Dimension of digital height gauge

    Details

    Digital Height Gauge Details

    Application

    ATO digital height gauges are also called height gauges. As the name suggests, its main purpose is to measure the height of workpieces, and it is also often used to measure shape and position tolerances, and sometimes to mark lines. Digital height gauges are mainly used in the automotive industry, manufacturing, science, and research industries.

    Application of digital height gauge

    Tips: How to solve the problem that the ruler frame of the digital display height gauge does not move well?

    1. Properly adjust the curvature of the ruler frame spring.
    2. Properly adjust the screw-in depth of the adjusting screw and the screw stop pin.
    3. Straightness of the guide surface and the bottom surface of the straightening ruler body.
